2170280 ETHERLINE H CAT. 5e 2x2x24/1AWG LAPP Ethernet cable Category 5e, Class D for fixed installation veri..

Benefits

• Seamless communication from the sensor/actuator level to the Internet
• Screened against interference
• Can be used in dry or damp rooms
• Can be used for Industrial Ethernet in harsh industrial environments
• cables with PUR jacket: 1000 V UL- rating for installation next to power cables

Application range

• 2pair: 10/100 Mbit/s for Industrial Ethernet
• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
• suitable for EtherCAT and EtherNet/IP applications
• Industrial use
• Fixed Installation

Product features

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• PUR outer sheath is highly resistant to mineral oils and abrasion
• Halogen-free outer sheath

Norm references / Approvals

• PUR versions: UL AWM Style 21576
• Flame retardant acc. to IEC 60332-1-2
• Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
• PUR cables: halogenfree acc. to VDE 0472-815

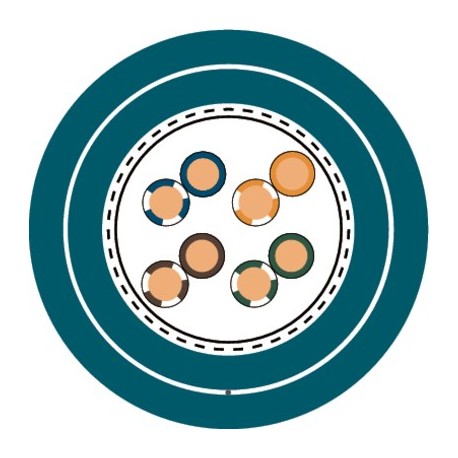

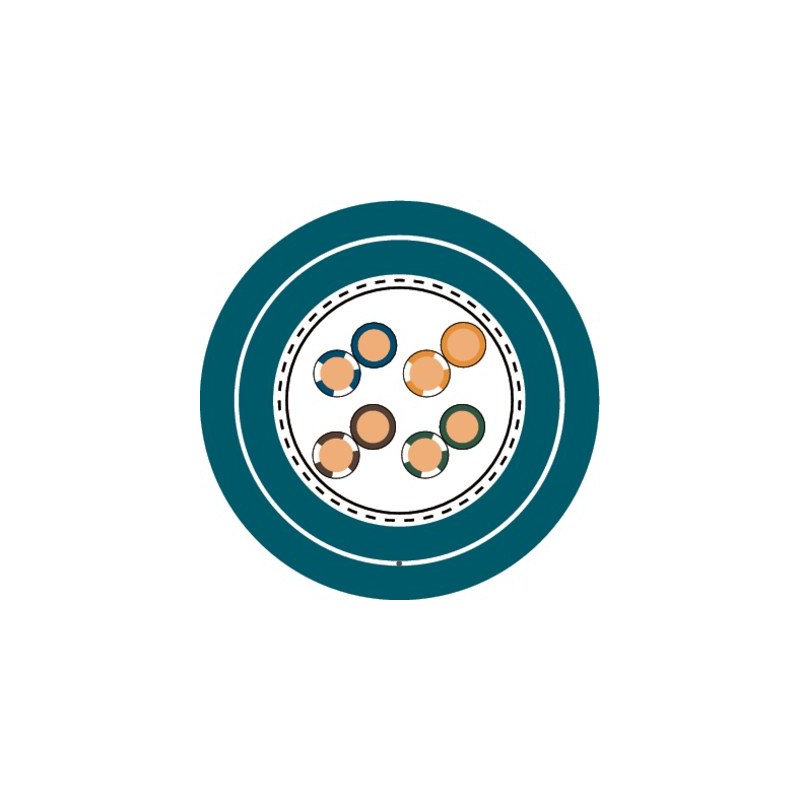

Product Make-up

• Solid conductor
• Core insulation made of foam skin
• 2 or 4-pair version
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Outer sheath as either PUR or LSZH
• Colour: water blue (similar to RAL 5021)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Fixed installation: 7.5 x outer diameter
• Fixed installation: 8 x outer diameter (4 pair cable)

Test voltage

• Core/core: 1000 V
• Core/screen: 500 V

Characteristic impedance

• nom. 100 Ω acc. to IEC 61156-5

Temperature range

• Fixed installation: -30°C to +80°C
• During installation: -5°C to +50°C
