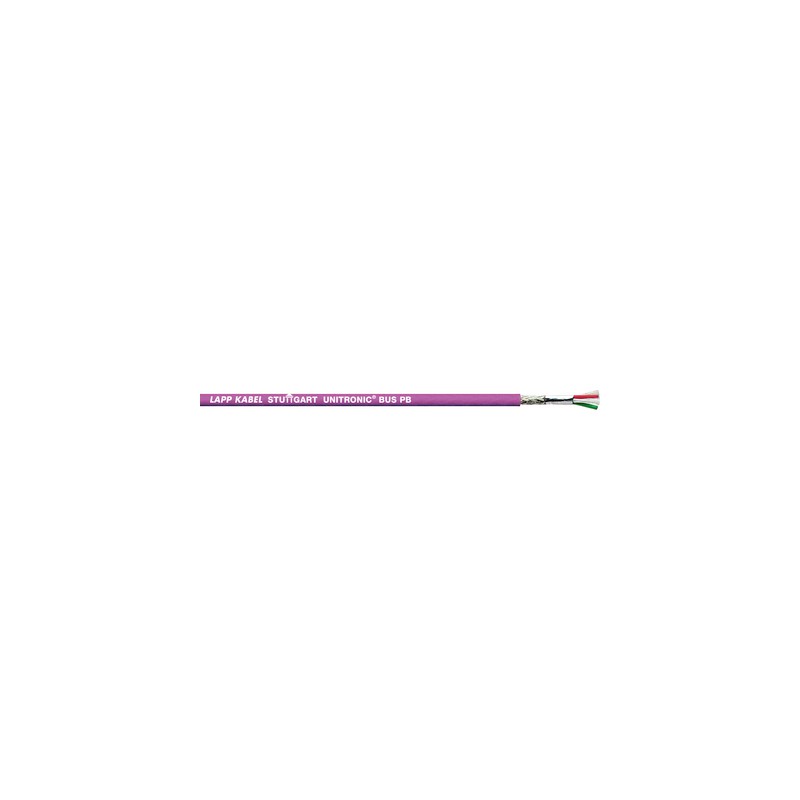

2170220 UNITRONIC BUS PB 1X2X0,64 LAPP UNITRONIC BUS PB 1X2X0,64
2170220
UNITRONIC BUS PB 1X2X0,64
LAPP
1 m.
UNITRONIC BUS PB 1X2X0,64
UNITRONIC® BUS PB
Cables > Data and communication cable
UNITRONIC BUS cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Often bought together
▲Best sellers
▲More info
▲Variours bus cable for PROFIBUS-DP, -FMS and FIP. E.g. Fast Connect and halogen free available.
- Lapp Kabel is a member of the PROFIBUS User Organisation (PNO)
- A for Advanced
here: UL and CSA certifications - CPR: Article number choice under www.lappkabel.com/cpr
Application range
- For fixed installation
Maximum electromagnetic screening - Dry or damp rooms
- Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant
Product features
- These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
- Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Norm references / Approvals
- In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
- See below for UL certification type
Product Make-up
- FC: Fast Connect cable design
- P: Polyurethane
H: Halogen-free - PE: polyethylene outer sheath, black
- 7-W: 7-wire, e.g. for applications where vibrations occur
- COMBI: Data transmission and
power supply in one cable
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications) 250 V
Conductor resistance
- (loop): max. 186 Ohm/km.
see also datasheet
Minimum bending radius
- Fixed installation: see data sheet
Test voltage
- Core/core: 1500 V rms
Characteristic impedance
- 150 ± 15 Ohm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170220 UNITRONIC BUS PB 1X2X0,64 2170220 EN_2170820.pdf | 279 Kbytes |
|
