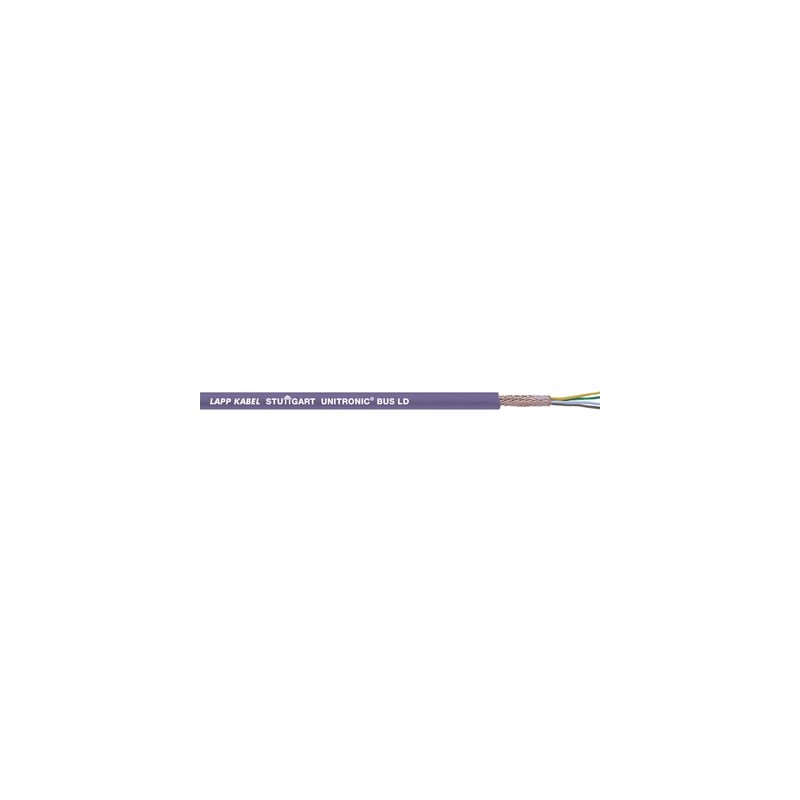

2170203 UNITRONIC BUS LD 1x2x0,22 LAPP UNITRONIC BUS LD 1x2x0,22

Benefits

• Suitable for multiple Bus systems based on RS485 / RS422

Application range

• For fixed installation
  Maximum electromagnetic screening
• Bus cables for bus systems such as e.g. Modbus, SUCOnet P, Modulink P, VariNet-P)
• Dry or damp rooms

Product features

• The stated bit rates result in the following cable lengths (maximum) of one bus segment:
• 9.6-93.75 kbit/s = 1200m
• 187.5 kbit/s = max. 1,000 m
• 500 kbit/s = max. 400 m

Norm references / Approvals

• UNITRONIC® BUS LD A:
  UL versions with certification:
  UL/CSA type CMX acc. to UL 444
  and CSA C22.2 no. 214-02
• Flame retardant acc. to IEC 60332-1-2

Product Make-up

• Stranded conductor, bare, 7-wire
• Core insulation: PE
• Colour code DIN 47100
• Overall screening of braided tinned-copper strands
• Outer sheath: PVC, violet (RAL 4001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• Flexible use: 10 x outer diameter

Peak operating voltage

• (not for power applications) 250 V

Conductor resistance

• (loop): max. 186 ohm/km

Minimum bending radius

• Fixed installation: 8 x outer diameter

Test voltage

• Core/core: 1500 V rms

Characteristic impedance

• 100 - 120 Ohm

Temperature range

• Fixed installation: -40°C to +80°C
• Flexing: -5°C to +70°C
