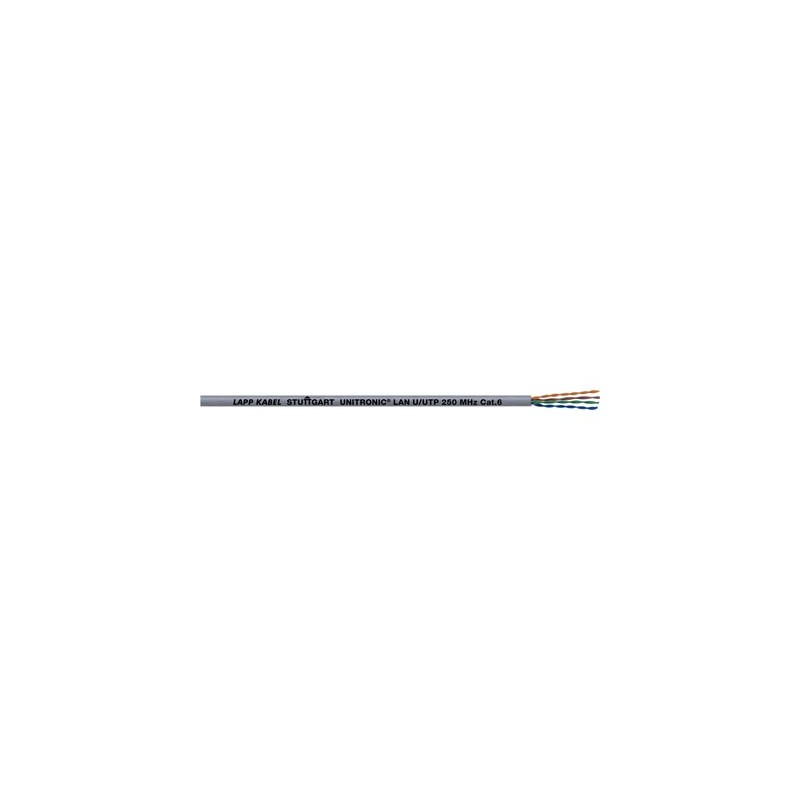

2170186 UNITRONIC LAN 250 U/UTP Cat.6 LAPP Data cable for Category 6, class E verified up to 250 MHz
2170186
UNITRONIC LAN 250 U/UTP Cat.6
LAPP
100 m.
UNITRONIC LAN 250 U/UTP Cat.6
UNITRONIC® LAN 250 cat.6
Cables > Data and communication cable
UNITRONIC LAN cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The LAN cable transmits the digital and analogue signals and is suitable for structured building wiring networks. The operating temperature of the cable is between -20 and 60 degrees.
CPR: Article number choice under www.lappkabel.com/cpr
Benefits
- LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801
Application range
- Mainly used where the terminal density is very high, e.g. for wiring office, administration and development buildings in the tertiary area (floor wiring).
Product features
- Transfer of digital and analogue data signals
- ETHERLINE®LAN Cat.6 cables are tested up to 350 MHz
- Flame retardant acc. to IEC 60332-1-2
2170194: flame retardant acc. to IEC 60332-1-2 and IEC 60332-3-24 - IEEE 802.3: 10/100/1000Base-T
IEEE 802.5: ISDN; FDDI; ATM
Norm references / Approvals
- Class E out of the standard ISO/IEC 11801 corresponds to CAT.6
- LAN CAT.6 cables from Lapp Kabel for "Structured Cabling Systems” meet the requirements in accordance with EIA/TIA-568 and TSB36, as well as ISO/IEC 11801 or EN 50173 (Class E - permanent link).
Product Make-up
- Solid conductor
- U/UTP: no overall or pair screening, 2 cores stranded to pair, 4 pairs stranded to bundle with central cross
- F/UTP: foil screening as overall screening
- outer sheath either as PVC (color grey RAL1015) or LSZH (color orange RAL2003)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Minimum bending radius
- during installation: 8 x outer diameter
- Fixed installation: 4 x outer diameter
Mean characteristic Impedance
- 100 Ω ± 15%
Temperature range
- Fixed installation: -20°C to +60°C
- Flexing: 0°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170186 UNITRONIC LAN 250 U/UTP Cat.6 2170186 2170186_EN_LAPP_PRO206193ENGB.pdf | 213 Kbytes |
|
