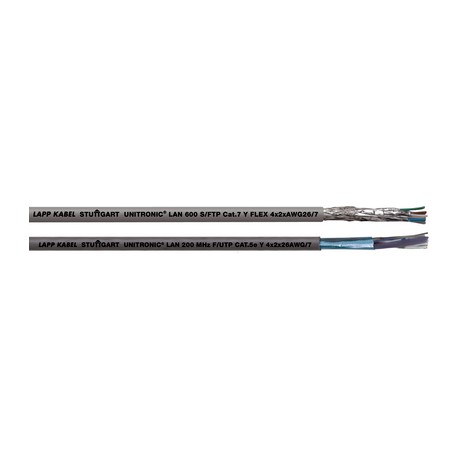

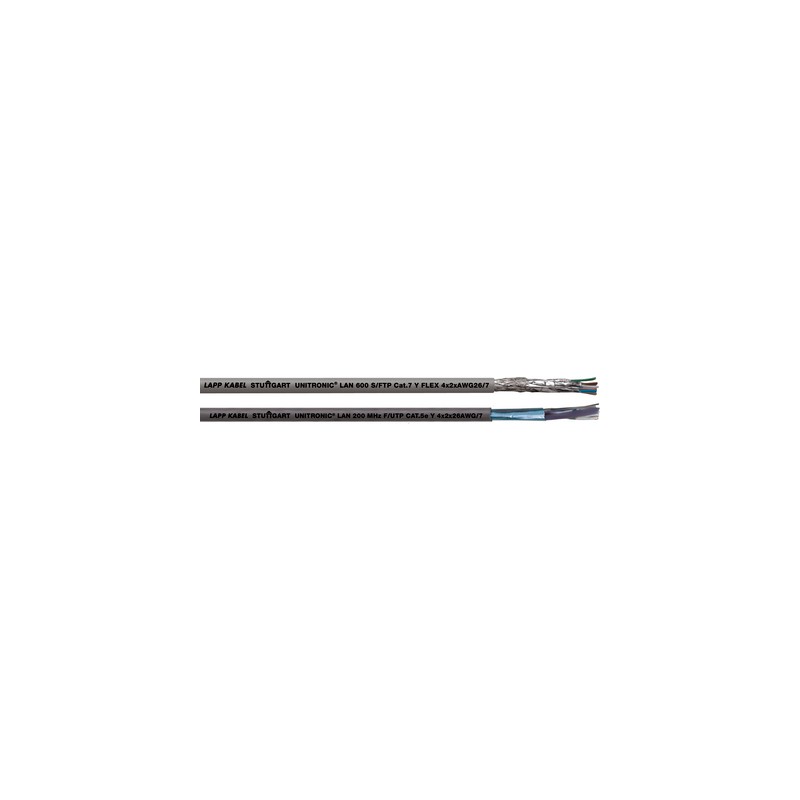

2170129 UNITRONIC LAN 200 SF/UTP Cat.5e FLEX LAPP UNITRONIC LAN 200 SF/UTP Cat.5e FLEX
2170129
UNITRONIC LAN 200 SF/UTP Cat.5e FLEX
LAPP
100 m.
UNITRONIC LAN 200 SF/UTP Cat.5e FLEX
UNITRONIC
Cables > Data and communication cable
UNITRONIC LAN cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The LAN cable has good flexibility and can be installed easily in restricted spaces. The cable is suitable for connection in control cabinets.
Only for patch cable applications
(max. 60 m)
Benefits
- For directly connecting two electric components
- Easy to assemble
Application range
- Indoor applications
- LAN connections
- Control cabinet wiring
Product features
- Good flexibility - easy installation with tight space requirements
- Flame retardant acc. to IEC 60332-1-2
2170139: flame retardant acc. to IEC 60332-1-2 and IEC 60332-3-24
Product Make-up
- F/UTP: foil screening as overall screening
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- outer sheath either as PVC or LSZH (color grey RAL 7035)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Minimum bending radius
- Fixed installation: 4 x outer diameter
- during installation: 8 x outer diameter
Mean characteristic Impedance
- 100 Ω ± 15%
Temperature range
- Fixed installation: -20°C to +60°C
- Flexing: 0°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170129 UNITRONIC LAN 200 SF/UTP Cat.5e FLEX 2170129 EN_2170144.pdf | 186 Kbytes |
|
