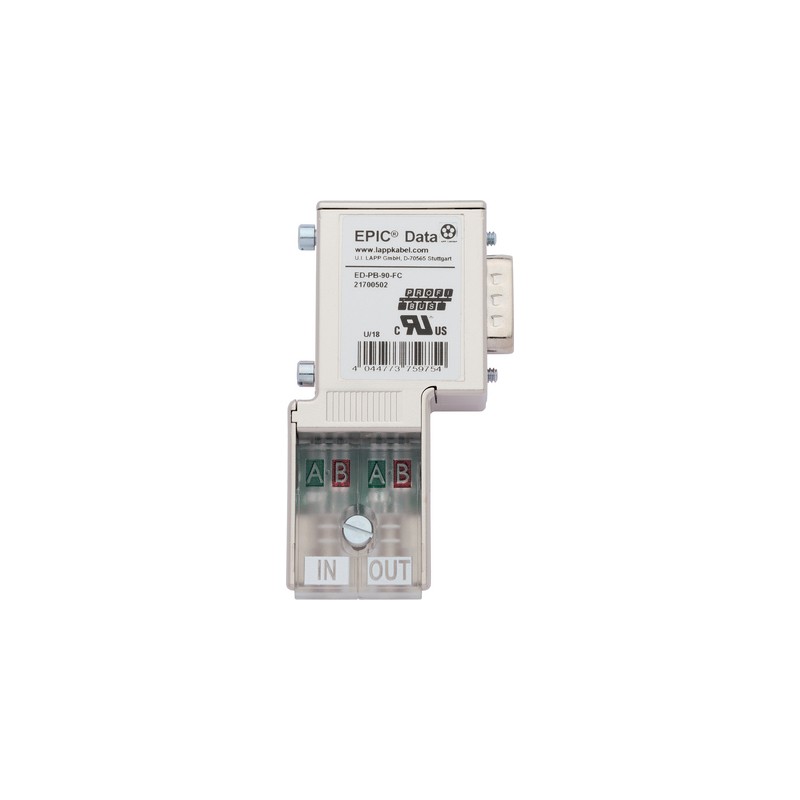

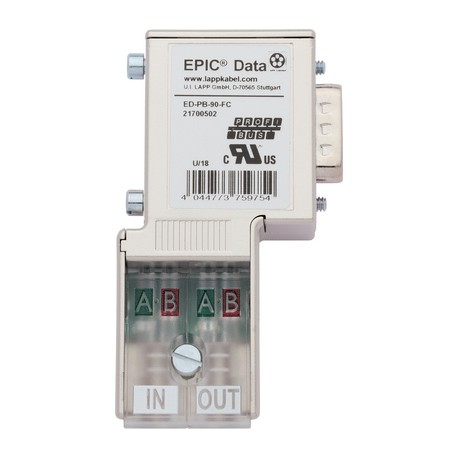

21700544 ED-PB-AX-FC LAPP ED-PB-AX-FC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

21700544 ED-PB-AX-FC LAPP ED-PB-AX-FC

21700544

ED-PB-AX-FC

LAPP

ED-PB-AX-FC

EPIC® DATA PB Sub-D FC

More details


Data and telecommunication > D-Sub connector

EPIC DATA Copper

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $71.64
Unit price: $71.64

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


PROFIBUS Sub-D connector, Fast Connect, integrated bus termination, optional LED diagnostic/interfaces, cable outlet 35°/90°/180°

  • New innovative insulation displacement terminals suitable for solid and flexible conductors (90° and 180° versions )
  • Versions with 2nd Sub-D interface
  • Optional with LED diagnostic

Benefits

  • Quick installation with Fast Connect ('FC') technology
  • sensor/ ac
  • No loose parts
  • Visual bus connection control
  • Terminating resistor (integrated) can be switched

Product features

  • Fully compatible with market standard
  • Max. transmission rate 12 Mbit/s possible
  • Current consumption max. 12,5 mA
    (with LED 35 mA)
  • Supply voltage 4.75 - 5.25 V DC
    (supplied from the terminal)
  • Terminating resistor "ON" - the outbound bus cable is disconnected

Norm references / Approvals

  • IEC 61158, IEC 61784
  • UL File No. E331560

Product Make-up

  • D-Sub plug, 9-pin, fixing screws 4-40 UNC
  • Improved electromagnetic compatibility (EMC) by metallized housing
  • Max. cable outer diameter: 8 mm
  • Versions with additional Sub-D interface for programming/diagnostic ('PG')
  • LED Version indicate:
    bus operation - (green)
    station transmission - (blue)
    terminating resistor "on" - (orange)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001132
  • ETIM 5.0 Class-Description: D-Sub connector

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001132
  • ETIM 6.0 Class-Description: D-Sub connector

Dimensions

  • 95 mm x 70 mm x 17 mm - 35°
    72 mm x 40 mm x 17 mm - 90°
    70 mm x 35 mm x 17 mm - 180°
  • (LxWxH)

Connection type

  • Fast Connect

Protection rating

  • IP 20

Terminating resistor

  • 150 Ω

Interfaces

  • Sub-D socket, 9-pin
    PROFIBUS FC standard cable, Ø 0.64 mm

Permissble ambient conditions

  • Operating temperature: -25°C to +85°C
  • *The max. temperature for UL is 60 °C
