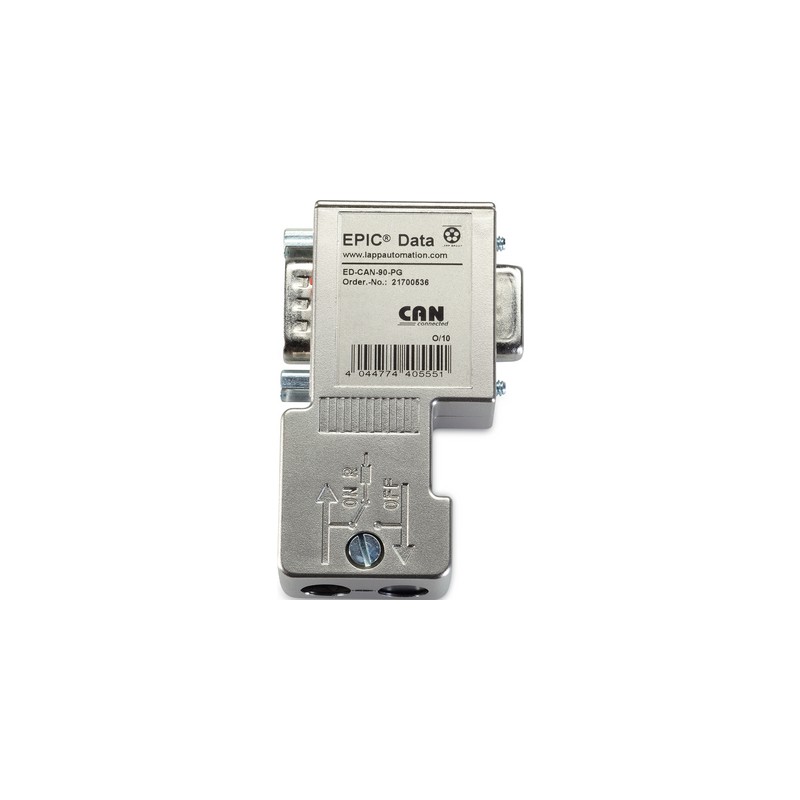

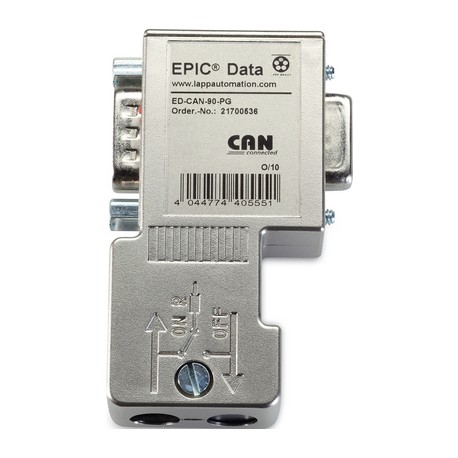

21700536 ED-CAN-90-PG LAPP ED-CAN-90-PG

Benefits

• Terminating resistor (integrated) can be switched
• sensor/ ac
• No loose parts
• With additional 24 V DC output to supply external devices (90° version only)

Product features

• Max. transmission rate 1 Mbit/s possible
• Terminating resistor "ON" - the outbound bus cable is disconnected
• The integrated, connectable terminating resistor
  enable the CAN-Bus to be terminated or connected through
• Sub-D pin assignment:
  CAN Low = Pin 2
  CAN High = Pin 7
  CAN Gnd = Pin 3
  GND = Pin 6 (90° version only)
  CAN V+ = Pin 9 (90° version only)
  (shield = housing)

Norm references / Approvals

• UL File No. E331560

Product Make-up

• D-Sub plug, 9-pin, fixing screws 4-40 UNC
• Screw connection
• Improved electromagnetic compatibility (EMC) by metallized housing
• For cable outer diameter: 5 - 8 mm

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001132
• ETIM 5.0 Class-Description: D-Sub connector

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001132
• ETIM 6.0 Class-Description: D-Sub connector

Dimensions

• 60 mm x 40 mm x 17 mm - 90°
  67,5 mm x 35 mm x 17 mm - 180°
• (LxWxH)

Connection type

• Screwing

Protection rating

• IP 20

Terminating resistor

• 120 Ω

Interfaces

• CAN bus station:
  D-Sub socket, 9-pin
  CAN bus cable:
  6 terminal blocks for wires up to 0.8 mm²

Permissble ambient conditions

• Operating temperature: -25°C to +85°C
• *The max. temperature for UL is 60 °C
