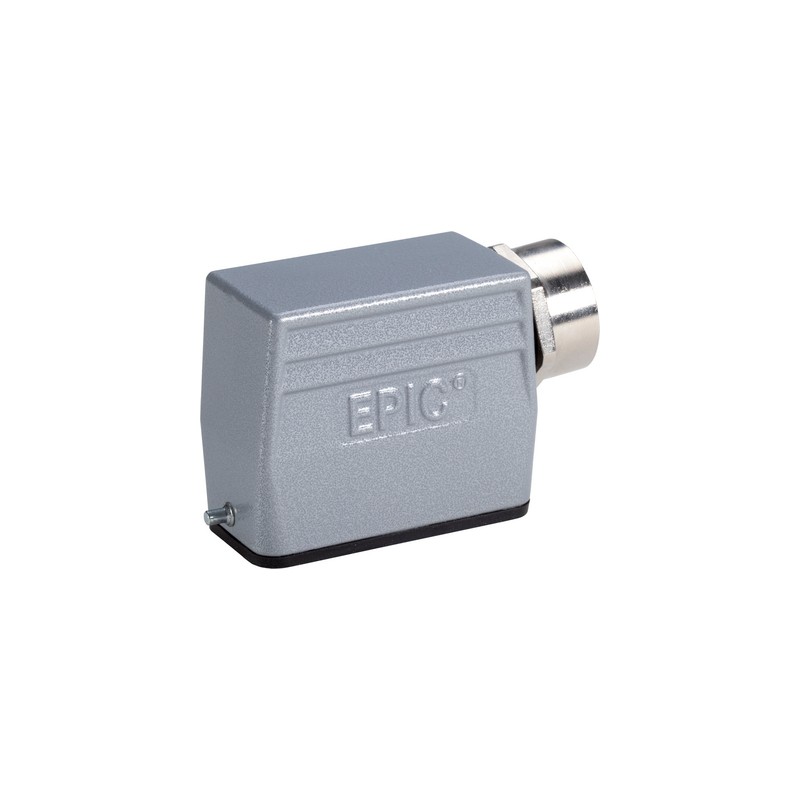

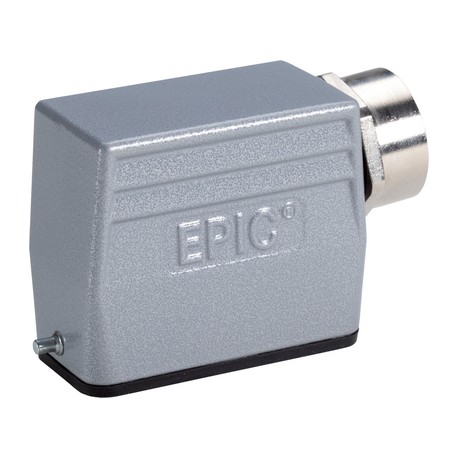

19445500 EPIC H-A 10 TS M25 ZW LAPP EPIC H-A 10 TS M25 ZW
19445500
EPIC H-A 10 TS M25 ZW
LAPP
5
EPIC H-A 10 TS M25 ZW
EPIC® H-A 10 TS
Connectors > Housing for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The robust metal housing intended for rectangular connectors has a low profile, pivots for a single lever and a side cable entry.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- Small and space-saving for narrow available space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Hood, low version
- Bolts for single lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 19445500 EPIC H-A 10 TS M25 ZW 19445500 EN_19445500.pdf | 325 Kbytes |
|
