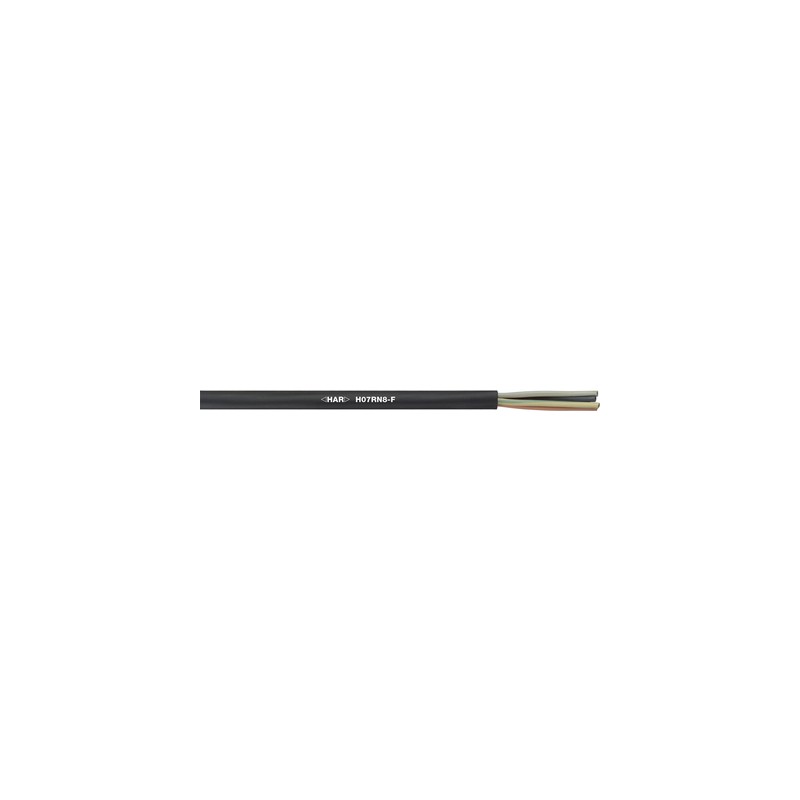

1600613 H07RN8-F 4G10 LAPP H07RN8-F 4G10

Benefits

• Submersion, considering application standards, e.g. EN 50565-2
• According to EN 50565-2, underwater use prohibited in areas with shipping traffic, moving water or where there is a risk of dangerous, mechanical damage
• High stresses
• Type-compliant versions <HAR>-certified with "<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area

Application range

• According to EN 50565-2: Dry or damp rooms, as well as outdoors and in industrial water
• For connecting mobile, electrical equipment in industrial water
• For use with submersible pumps
• Submersion acc. AD8 standard down to 10 m depth

Product features

• Flame-retardant according IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Flexible

Norm references / Approvals

• <HAR> cable type approval according to EN 50525-2-21

Product Make-up

• Conductor made of bare copper wires
• Core insulation: rubber compound, type EI 4
• Outer sheath: rubber compound, type EM2

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• 4 to 8 x outer diameter (EN 50565-1)

Nominal voltage

• U0/U: 450/750 V

Test voltage

• 2500 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Current rating

• VDE 0298 Part 4
• EN 50565-1/ VDE 0298-565-1

Temperature range

• Fixed installation: -40 up to +60°C
  Occasionally moved: -25°C up to +60°C
• Max. water temperature: +40°C
