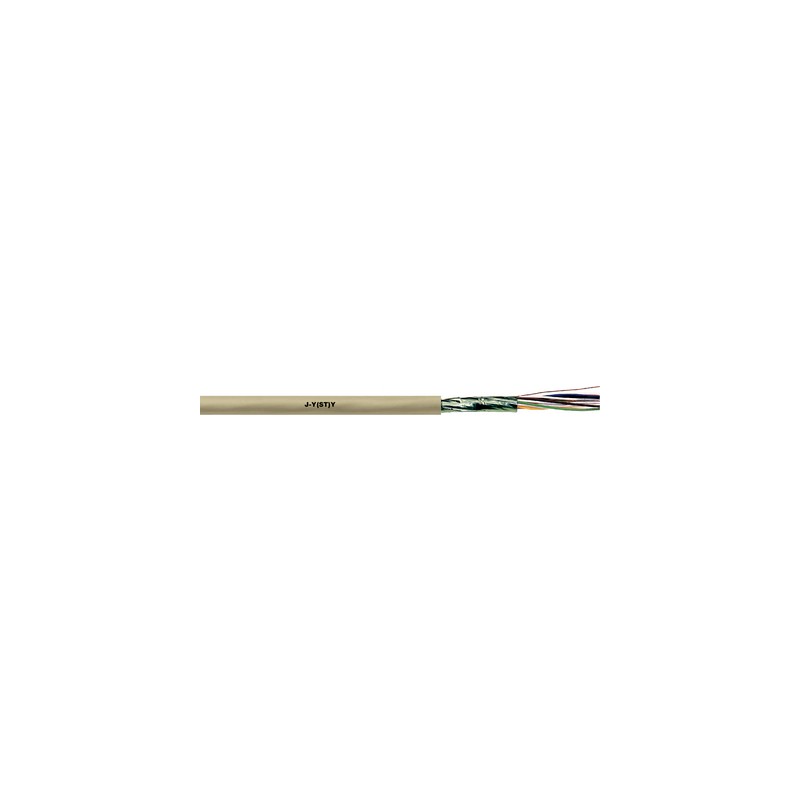

1591318 LAPP J-Y(ST)Y...LG 100X2X0,6

Benefits

• Indoor telephone cables transmit analogue or digital signals
• Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• Connection cable for use in electronics and in measurement, control and signal applications
• In news and communication applications, the following connections can be installed: telephone, telefax, telex, standard modems for postal services; burglar and fire alarm systems (cf. fire alarm cables); communication and paging systems; access control, time and data control systems
• Can be used in dry and wet interiors for fixed installation on and under plaster

Product features

• The 2-paired versions = star quad cable design
• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• In accordance with DIN VDE 0815type J-Y(ST)Y...LG

Product Make-up

• Solid bare copper conductor
• Core insulation made of PVC
• Cores twisted in pairs,
  pairs twisted together,
  foil wrapping over cable core,
  static screen made of aluminium-laminated plastic film with copper drain wire
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000829
• ETIM 5.0 Class-Description: Signal-/telecommunications cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000829
• ETIM 6.0 Class-Description: Signal-/telecommunications cable

Core identification code

• according to VDE 0815,
  refer to Appendix T10

Coupling

• (800 Hz): K1: 80% ≤ 300 pF/100m

Conductor cross-section in

• 0.6 mm: 0.28 mm²
• 0.8 mm: 0.50 mm²

Cable attenuation/attenuation

• 0.6 mm: 1.7 dB/km
• 0.8 mm: 1.1 dB/km

Minimum bending radius

• Fixed installation: 10 x outer diameter

Test voltage

• Core/core: 800 V
• Core/screen: 800 V

Loop resistance

• 0.6 mm: max. 130 ohm/km
• 0.8 mm: max. 73.2 ohm/km

Temperature range

• Occasional flexing: -5°C to +50°C
• Fixed installation: -30°C to +70°C
