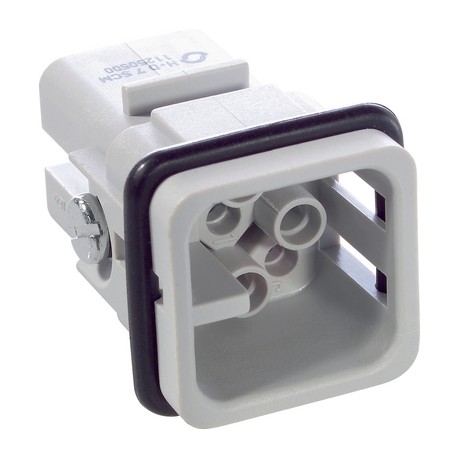

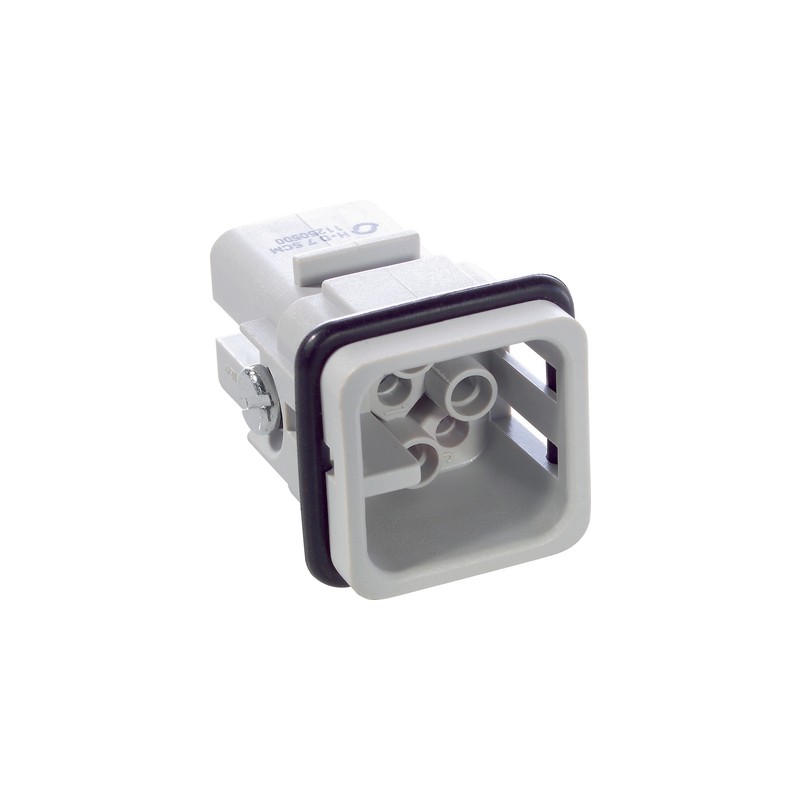

11250500 H-D 7 SCM MALE INSERT LAPP H-D 7 SCM MALE INSERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

11250500 H-D 7 SCM MALE INSERT LAPP H-D 7 SCM MALE INSERT

11250500

H-D 7 SCM MALE INSERT

LAPP

10

H-D 7 SCM MALE INSERT

EPIC H-D 7 SCM MALE INSERT

EPIC® H-D 7 machined

More details


Connectors > Contact insert for rectangular connectors

EPIC rectangular

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $29.73
Unit price: $2.97

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The compact standard insert has machined contacts and is suitable, for example, for control systems and machine or device manufacturing.

  • Compact, powerful standard insert
  • For machined contacts for fast processing with the crimping tool
  • Made in Germany

Benefits

  • Small, high-performance connector
  • High performance crimping contacts
  • PE contact with screw connection

Application range

  • Machine and equipment manufacturing
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 24 V (AC)/60 V (DC) metal housing; 250 V thermoplastic housing;
    UL: 250 V

Rated impulse voltage

  • 2.5 kV

Rated current (A)

  • IEC: 10 A
    UL: 10 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 7 + PE

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Material

  • PBT Polyester

Cycle of mechanical operation

  • 100

Certifications

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
11250500 H-D 7 SCM MALE INSERT 11250500 EN_11250500.pdf 447 Kbytes 11250500 H-D 7 SCM MALE INSERT 11250500 EN_11250500.pdf
