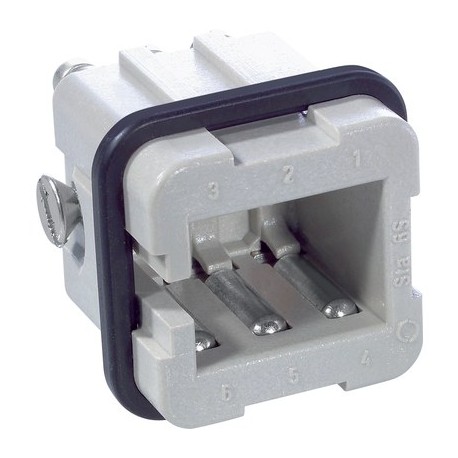

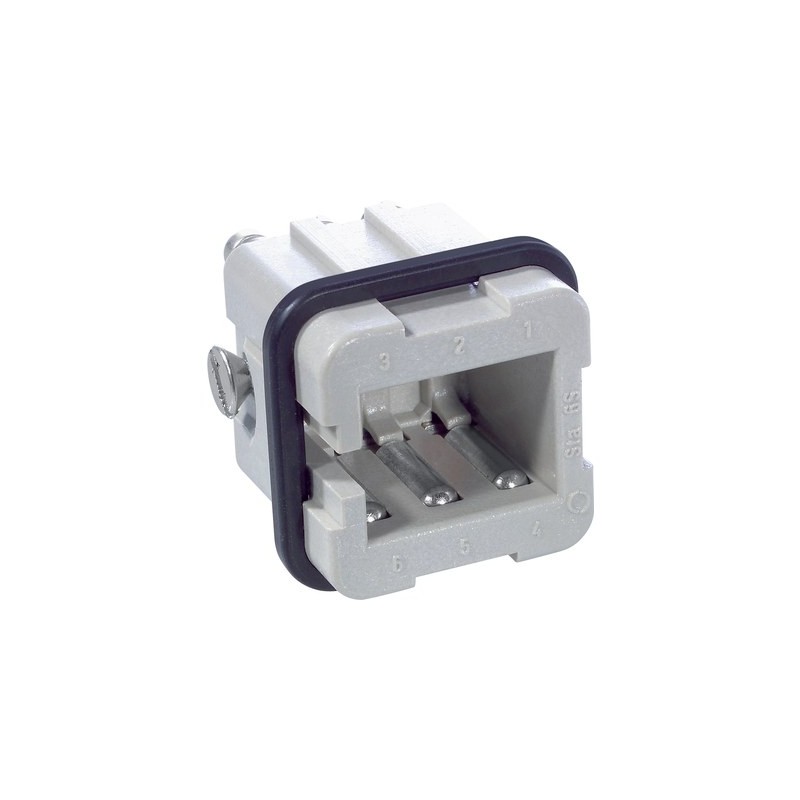

LAPP 10485200 10485200 EPIC STA 6 SL - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10485200 EPIC STA 6 SL LAPP EPIC STA 6 SL

Reference: 10485200

Catalog Number: EPIC STA 6 SL

Manufacturer: LAPP

Description:

EPIC STA 6 SL
EPIC® STA 6 Solder termination

Categories:

  • Connectors > Contact insert for rectangular connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 45,08 €

Unit Price: 4,508 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The insert with solder termination is ideal for use in electronic laboratories or control systems. The temperature range is from -40 to +80 degrees.

  • For reliable signal transmission in harsh environmental conditions
  • Mechanically robust spring contacts
  • Made in Germany

Benefits

  • good contact due to the strong contact springs.
  • The proven STA inserts with spring contacts

Application range

  • Control systems
  • Rack technology
  • Electronic laboratory

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 24 V AC, 60 V DC
    UL: 48 V
    CSA: 48 V

Rated current (A)

  • IEC: 10 A
    UL: 10 A
    CSA: 10 A

Pollution degree

  • 2

Contact resistance

  • < 3 mOhm

Contacts

  • Copper alloy, tinned

Number of contacts

  • 6

Termination methods

  • Solder termination: up to 1.5 mm²

Stripping length (mm)

  • 5

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C up to +80°C
