LAPPEPIC rectangular10407900 H-S 4+2xPE BAS LAPP H-S 4+2xPE BAS

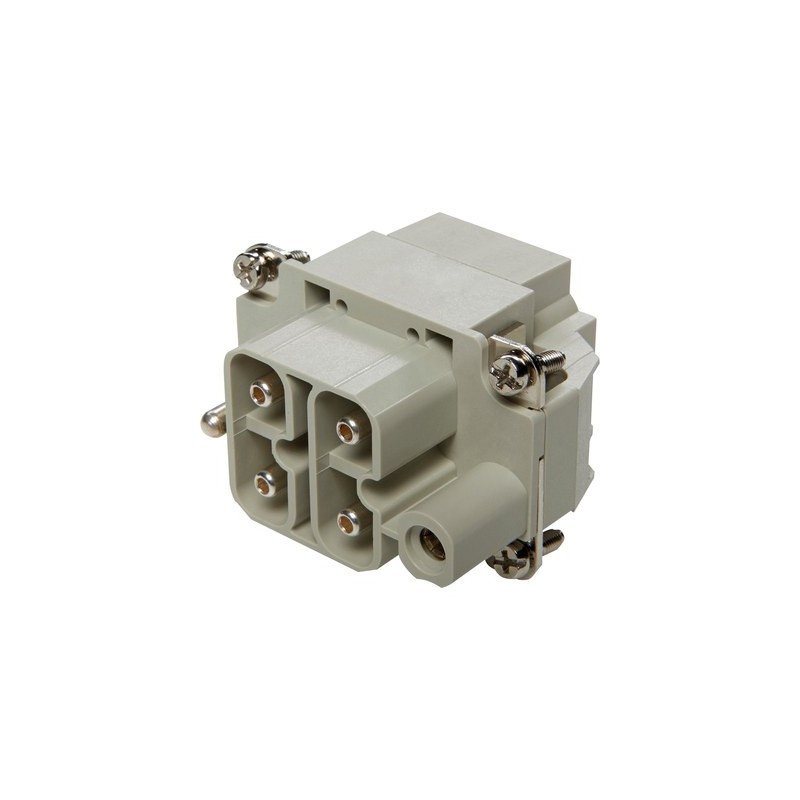

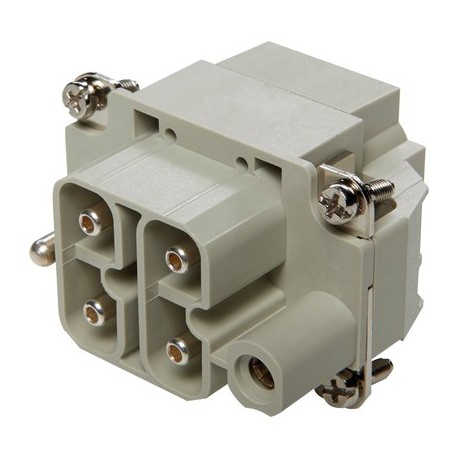

LAPP 10407900 10407900 H-S 4+2xPE BAS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10407900 H-S 4+2xPE BAS LAPP H-S 4+2xPE BAS

Reference: 10407900

Catalog Number: H-S 4+2xPE BAS

Manufacturer: LAPP

Description:

H-S 4+2xPE BAS
Power H-S

Categories:

  • Connectors > Contact insert for rectangular connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 552,88 €

Unit Price: 55,288 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The connector insert is suitable for transmitting high current in small areas. It has axial screw terminations for installation without the special tool.

  • Very high current transfer in a small space
  • Axial screw termination for assembly without special tool

Benefits

  • Fast and easy assembly
  • Very high current transfer
  • Lower space requirement
  • Axial screw termination for assembly without special tool

Application range

  • Mechanical engineering
  • Plant engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 1000 V
  • UL: 600 V

Rated impulse voltage

  • 8 kV

Rated current (A)

  • IEC: 40 A
  • UL: 85 A
    CSA: 44 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 1 mOhm

Number of contacts

  • 4 + PE

Termination methods

  • Axial screw termination
  • 2,5 mm² - 6 mm² (AWG 14 - 11)

Stripping length (mm)

  • 8

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Temperature range

  • -40°C to +125°C
