LAPPEPIC rectangular10399600 MCS 4 F STECKERMODUL LAPP MCS 4 F MALE MODULE

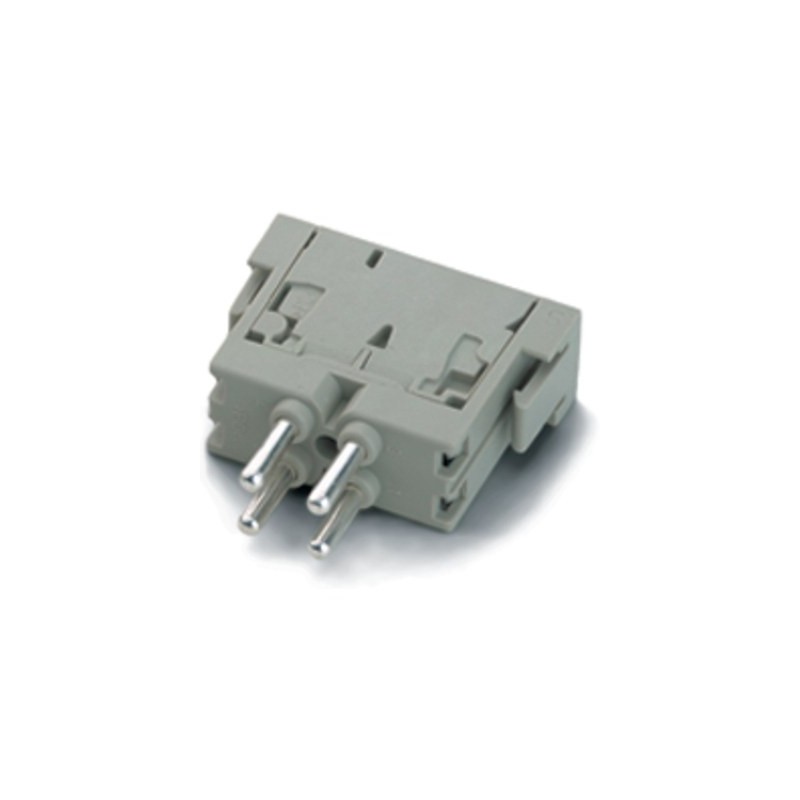

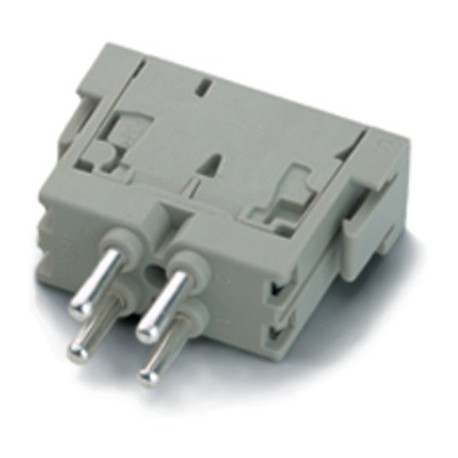

LAPP 10399600 10399600 MCS 4 F STECKERMODUL - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10399600 MCS 4 F STECKERMODUL LAPP MCS 4 F MALE MODULE

Reference: 10399600

Catalog Number: MCS 4 F STECKERMODUL

Manufacturer: LAPP

Description:

MCS 4 F MALE MODULE
EPIC® MC Module: Cage clamp 4pole

Categories:

  • Connectors > Modular connector (industrial connector)
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 87,23 €

Unit Price: 8,723 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The module with spring-type terminal ensures fast connection with spring pin and has 4 contacts. It can be used, for example, in printing presses.

Fast connection by cage spring

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 400 V

Rated current (A)

  • 14 A

Pollution degree

  • 3

Contact resistance

  • 1.5 - 4 mohm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 4

Termination methods

  • Cage clamp termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 10

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C

DATASHEET - PDF

Title
Size
Type
10399600 MCS 4 F STECKERMODUL 10399600 EN_10399600.pdf
427 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
