LAPPEPIC rectangular10399100 EPC MCB 4 CM LAPP EPIC MCB 4 CM FEMALE MODULE

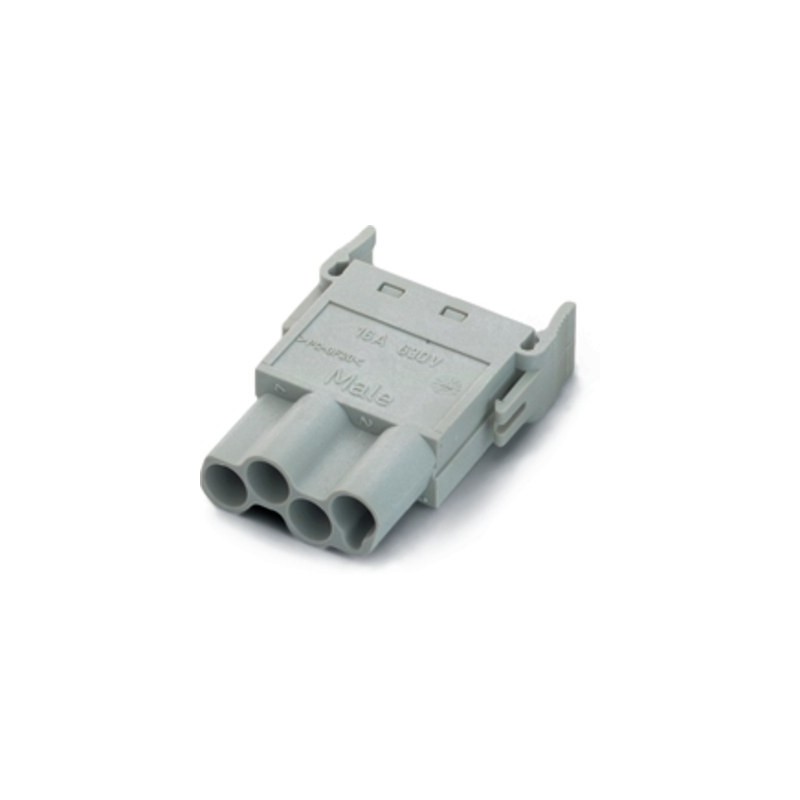

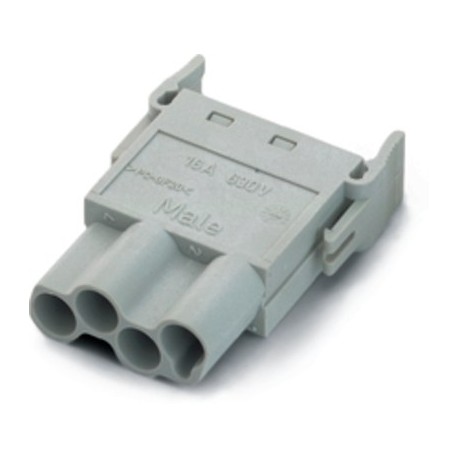

LAPP 10399100 10399100 EPC MCB 4 CM - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10399100 EPC MCB 4 CM LAPP EPIC MCB 4 CM FEMALE MODULE

Reference: 10399100

Catalog Number: EPC MCB 4 CM

Manufacturer: LAPP

Description:

EPIC MCB 4 CM FEMALE MODULE
EPIC® MC Module: HE 4pole

Categories:

  • Connectors > Modular connector (industrial connector)
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 18,88 €

Unit Price: 1,888 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 630 V

Rated current (A)

  • 25 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 4

Termination methods

  • Crimp termination: 0.5 - 4.0 mm²

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C

DATASHEET - PDF

Title
Size
Type
10399100 EPC MCB 4 CM 10399100 EN_10399000.pdf
517 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
