LAPPEPIC rectangular10383500 EPIC MCB 10 CG LAPP MCB 10 CG FEMALE MODULE

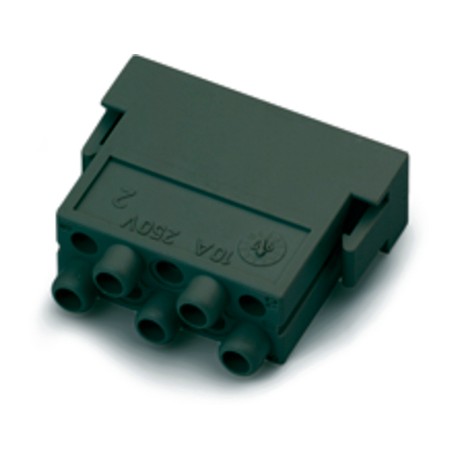

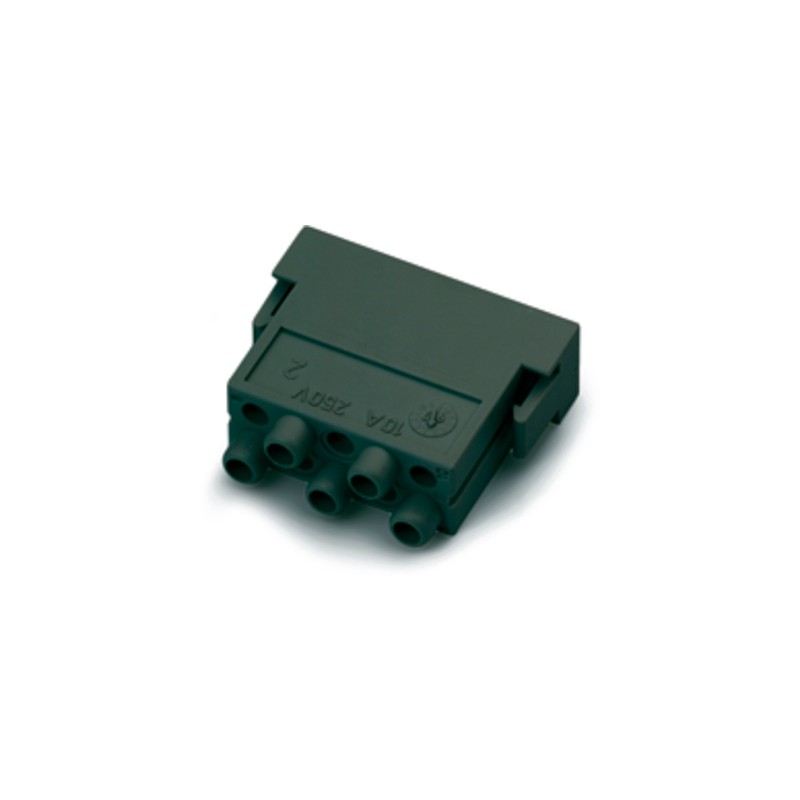

LAPP 10383500 10383500 EPIC MCB 10 CG - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10383500 EPIC MCB 10 CG LAPP MCB 10 CG FEMALE MODULE

Reference: 10383500

Catalog Number: EPIC MCB 10 CG

Manufacturer: LAPP

Description:

MCB 10 CG FEMALE MODULE
EPIC® MC Module: 10pole stamped

Categories:

  • Connectors > Modular connector (industrial connector)
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 14,22 €

Unit Price: 1,422 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The 10-pole module with pressed contacts ensures the high flexibility connector, thanks to multiple functions. It can be used, for example, in investment construction.

  • Suitable for processing with contacts on reel
  • for automated production with crimping machine

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 250 V

Rated current (A)

  • max. 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 10

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
