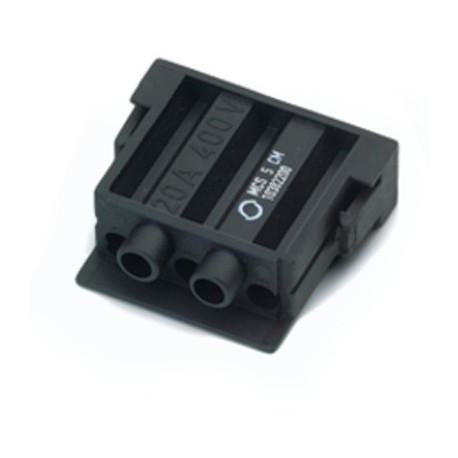

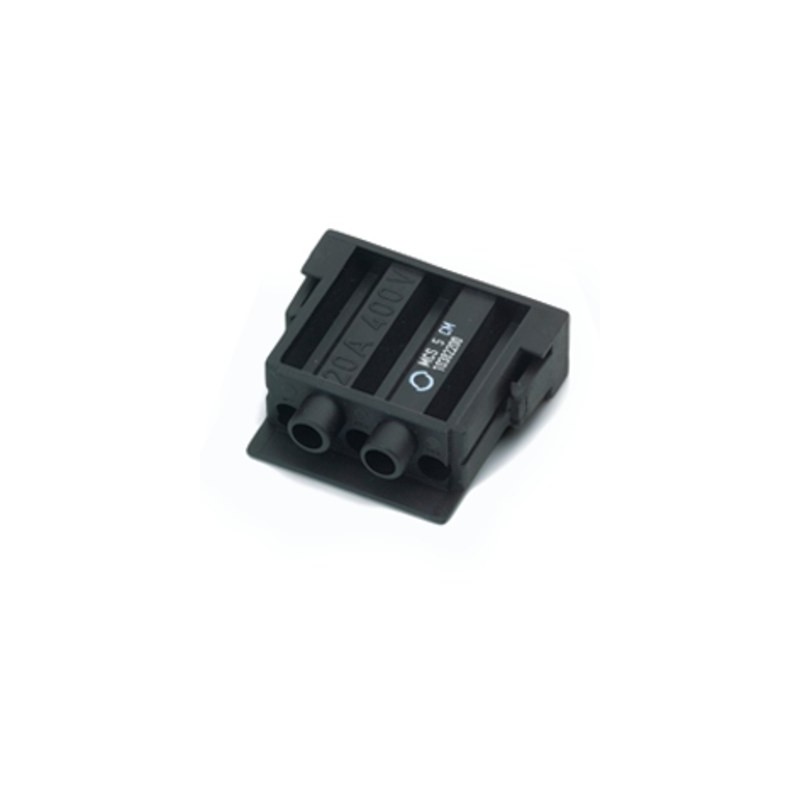

10382200 EPIC MCS 5 CM LAPP EPIC MCS 5 CM STECKERMODUL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

10382200 EPIC MCS 5 CM LAPP EPIC MCS 5 CM STECKERMODUL

10382200

EPIC MCS 5 CM

LAPP

10

EPIC MCS 5 CM STECKERMODUL

MCS 5 CM MALE MODULE

EPIC® MC Module: 5pole

More details


Connectors > Modular connector (industrial connector)

EPIC rectangular

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $11.33
Unit price: $1.13

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


One housing can combine signal and power modules and therefore ensures high flexibility. This is suitable for control systems.

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 400 V

Rated current (A)

  • 20 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 5

Termination methods

  • Crimp termination: 0.5 - 4.0 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
10382200 EPIC MCS 5 CM 10382200 EN_10382200.pdf 385 Kbytes 10382200 EPIC MCS 5 CM 10382200 EN_10382200.pdf
