LAPPEPIC rectangular10382100 EPIC MCB 3 CM LAPP MCB 3 CM FEMALE MODULE

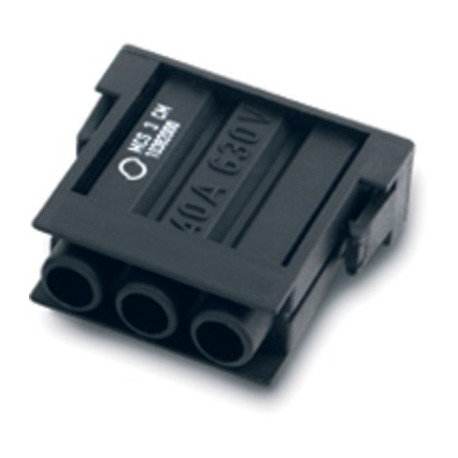

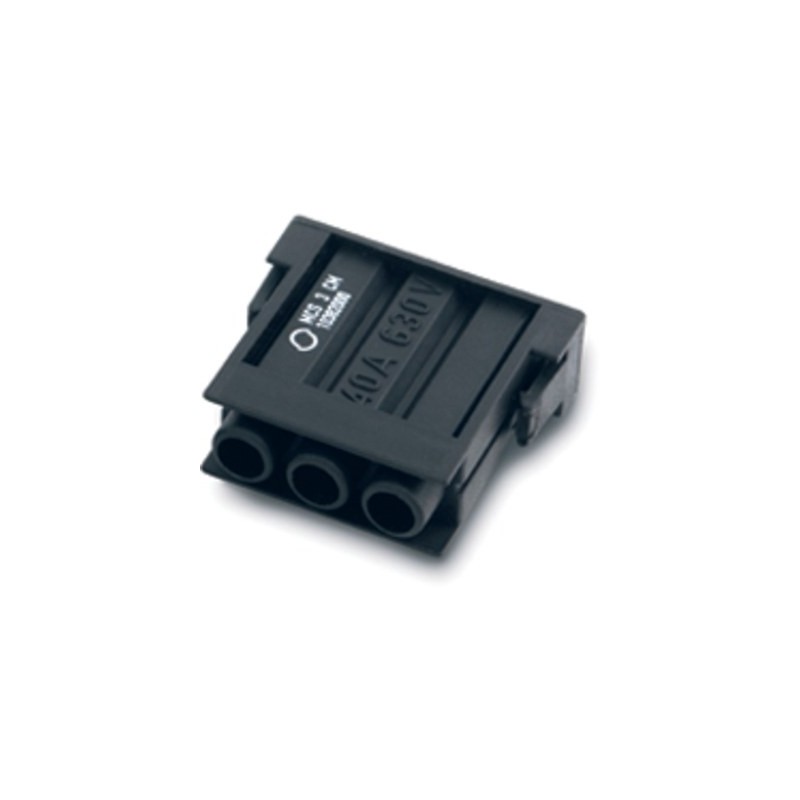

LAPP 10382100 10382100 EPIC MCB 3 CM - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10382100 EPIC MCB 3 CM LAPP MCB 3 CM FEMALE MODULE

Reference: 10382100

Catalog Number: EPIC MCB 3 CM

Manufacturer: LAPP

Description:

MCB 3 CM FEMALE MODULE
EPIC® MC Module: 3pole

Categories:

  • Connectors > Modular connector (industrial connector)
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 10,19 €

Unit Price: 1,019 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The three-pole signal module contains 3 contacts and is suitable for use in control systems, investment construction and printing presses.

Very high current transfer in a small space

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 630 V

Rated current (A)

  • 40

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 3

Termination methods

  • Crimp termination: 1.5 - 10 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
