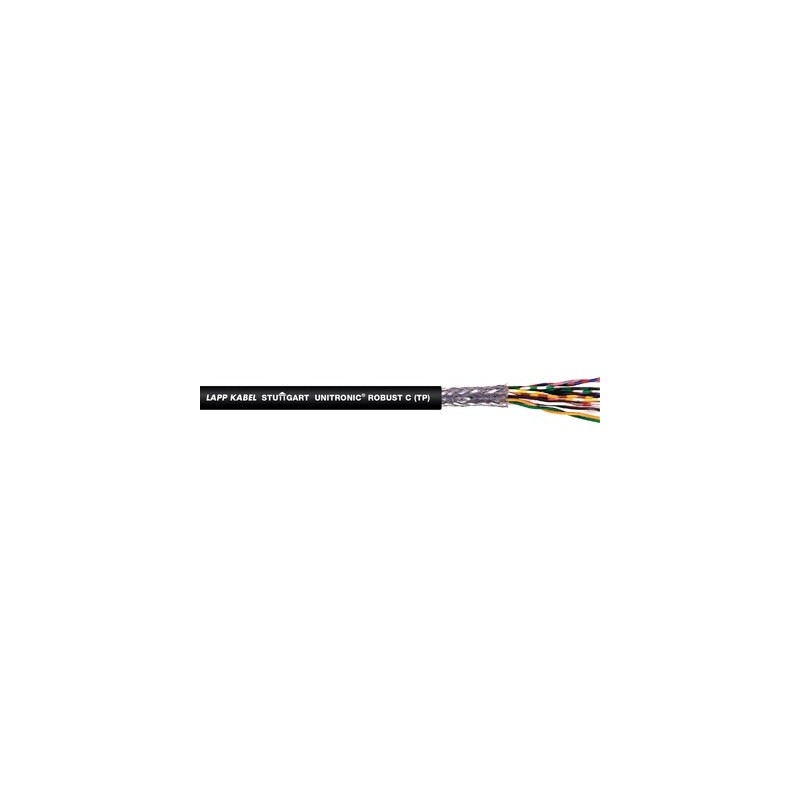

1032120 UNITRONIC ROBUST C (TP) 3x2x0,5 LAPP UNITRONIC ROBUST C (TP) 3x2x0,5

Benefits

• Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
• Resistant to contact with organic oils and the related emulsions as well as a multitude of plant, animal or synthetic-based greases and waxes
• Good resistance to ammonia compounds and bio-gases
• Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents
• Well-suited to steam cleaning

Application range

• Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
• Food and beverage industry, especially for production and processing equipment of milk and meat products
• For data processing, measurement and control engineering, safety related systems and as electronics cable
• For indoor and outdoor use

Product features

• Good chemical resistance to ester-based hydraulic fluids
• Ozone, UV and weather-resistant according to EN 50396 and HD 605 S2
• Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
• Low smoke density according to IEC 61034-2

Norm references / Approvals

• Based on VDE 0812
• Certified resistance to disinfection and cleaning solutions used in food and beverage industry

Product Make-up

• Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
• Core insulation made of special halogen-free compound
• TP structure
• Tinned-copper braiding
• Outer sheath made of special TPE
  Outer sheath colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Core identification code

• DIN 47100 without colour repetition, refer to Appendix T9

Mutual capacitance

• C/C approx. 60 nF/km
• C/S approx. 100 nF/km

Specific insulation resistance

• > 20 GOhm x cm

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded, fine-wire
  0.34 mm²: 7-wire

Torsion movement in WTG

• TW-0 & TW-2, refer to Appendix T0

Minimum bending radius

• Occasional flexing: 10 x outer diameter
• Fixed installation: 4 x outer diameter

Test voltage

• At 0.14 mm²: 1200 V

Temperature range

• Occasional flexing: -40°C to +90°C
• Fixed installation: -50°C to +90°C
