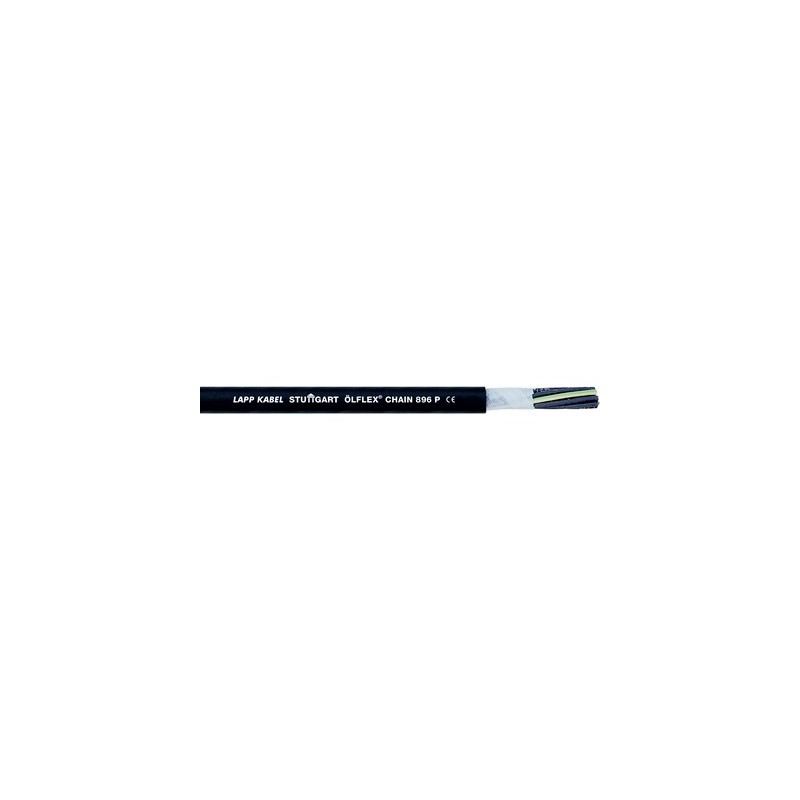

1023246 ÖLFLEX CHAIN 896P 5G4 LAPP ÖLFLEX CHAIN 896P 5G4

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Multi-standard certification reduces part varieties and saves costs
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Longer cable installation lengths thanks to low mutual capacitance cable design
• Wide temperature range for applications in harsh climatic environments

Application range

• In power chains or moving machine parts
• Applications in automation engineering
• Power circuits in industrial machines
• For use in assembling & pick-and-place machinery
• Particularly in wet areas of machine tools and transfer lines
• For indoor and outdoor use

Product features

• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Halogen-free materials
• Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
• Low-capacitance design
• Flexible down to -40°C

Norm references / Approvals

• VDE - reg - no. 8661
  UL AWM Style 20234
  cULus AWM I/II A/B, 1000V 80° FT1
  CSA AWM I/II A, 1000V 80° FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: polypropylene (PP)
• Non-woven wrapping
• PUR outer sheath, black (similar RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Minimum bending radius

• Flexing:
  up from 7.5 x outer diameter (up to 16mm²)
  up from 10 x outer diameter (from 25mm²)
• Fixed installation: 4 x outer diameter

Nominal voltage

• IEC U0/U: 600/1000 V
• UL & CSA: 1000 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: -40°C to +90°C
  (UL/CSA: +80°C)
• Fixed installation: -50°C to +90°C
  (UL/CSA: +80°C)

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
