LAPPEPIC rectangular10170000 EPIC H-BS 6 SS DR LAPP EPIC H-BS 6 SS DR

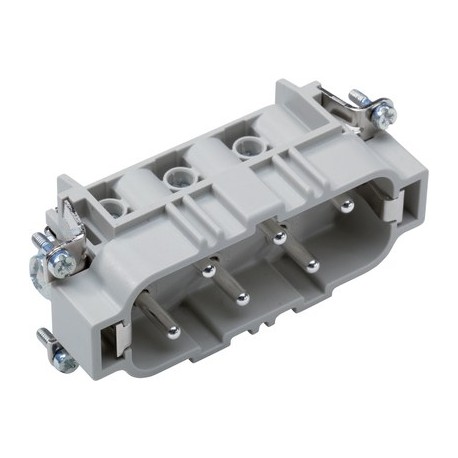

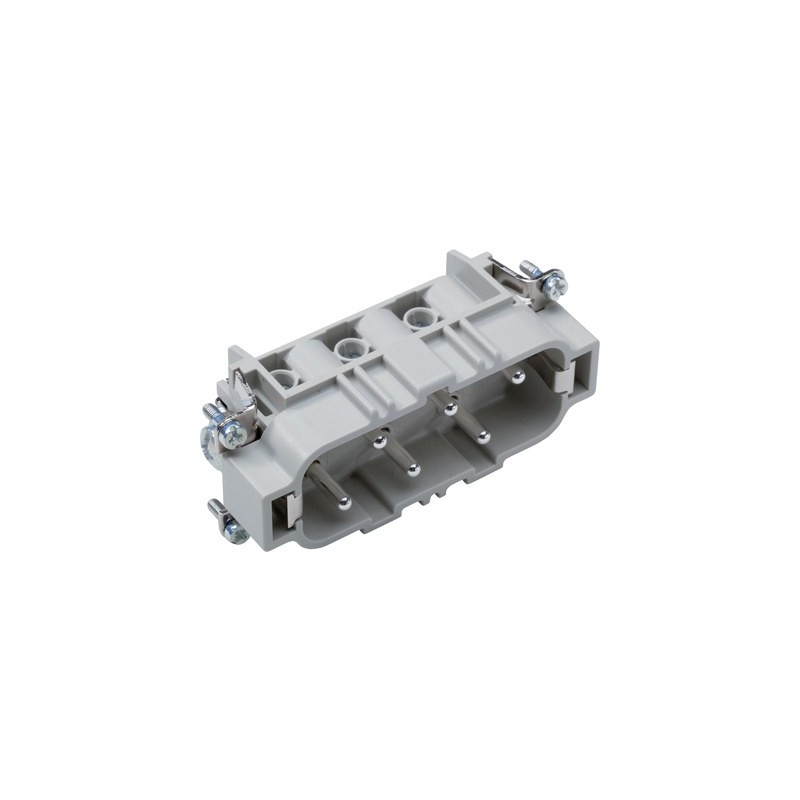

LAPP 10170000 10170000 EPIC H-BS 6 SS DR - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10170000 EPIC H-BS 6 SS DR LAPP EPIC H-BS 6 SS DR

Reference: 10170000

Catalog Number: EPIC H-BS 6 SS DR

Manufacturer: LAPP

Description:

EPIC H-BS 6 SS DR
EPIC® H-BS 6

Categories:

  • Connectors > Contact insert for rectangular connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 59,21 €

Unit Price: 11,842 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The standard connector insert is suitable for current load up to 35 A and can be used, for example, in drive systems or mechanical engineering.

  • Standard insert for currents up to 35A
  • Railway applications
  • Made in Germany

Benefits

  • High rating for currents up to 35 A
  • Screw termination up to a conductor cross section of 6 mm²
  • Railway applications
    - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • UL tested for application in control cabinets according UL 508 / UL 2237

Application range

  • Plant engineering
  • Mechanical engineering
  • Drive systems
  • Railway applications / vehicle construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 500 VUL: 600 VCSA: 600 V
  • Conductor - conductor: 690 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 35 A
    UL: 35 A
    CSA: 35 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 6 + PE

Termination methods

  • Screw termination: 0.5 - 6 mm²

Stripping length (mm)

  • 8

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770 and E483837

Temperature range

  • -40°C to +100°C, short-term up to +125°C

DATASHEET - PDF

Title
Size
Type
10170000 EPIC H-BS 6 SS DR 10170000 EN_10171000.pdf
446 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
