LAPPEPIC rectangular10027000 H-B 6 Q+E LAPP H-B 6 Q+E MOUNTING SYSTEM

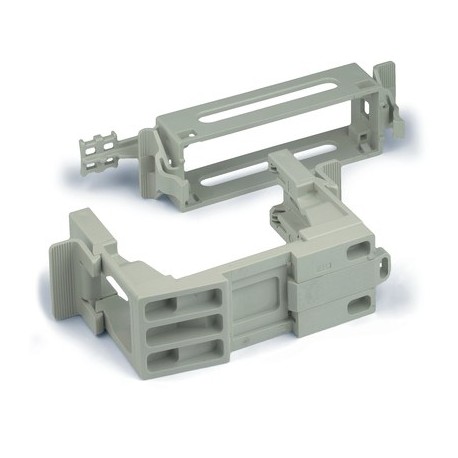

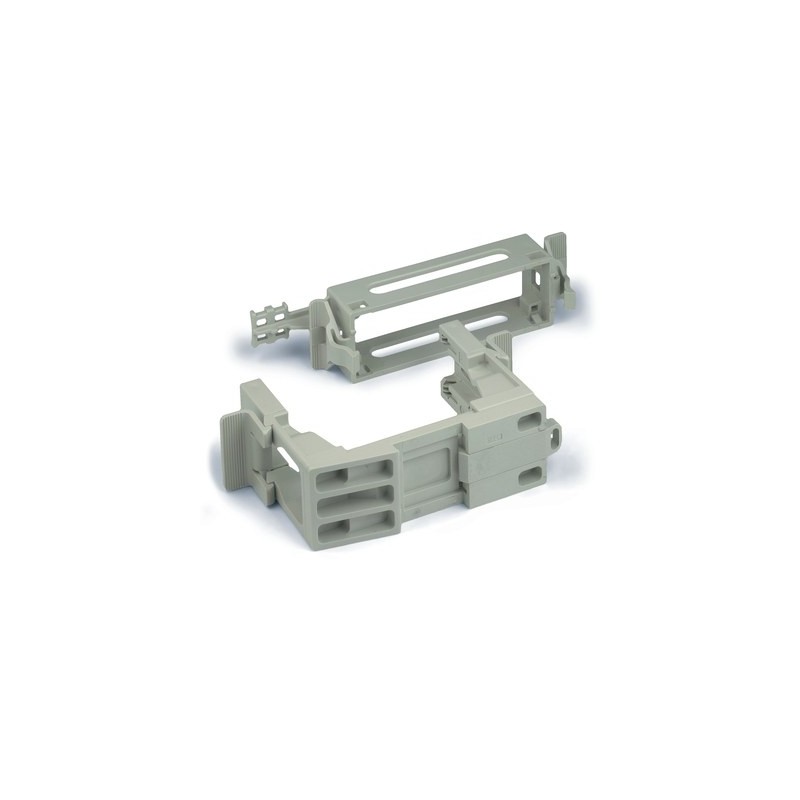

LAPP 10027000 10027000 H-B 6 Q+E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10027000 H-B 6 Q+E LAPP H-B 6 Q+E MOUNTING SYSTEM

Reference: 10027000

Catalog Number: H-B 6 Q+E

Manufacturer: LAPP

Description:

H-B 6 Q+E MOUNTING SYSTEM
EPIC® QUICK & EASY Mounting system

Categories:

  • Connectors > Module carrier frame for industrial connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 15,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).

Mounting system for control cabinets

Application range

  • Control cabinet manufacturing

Product features

  • For mounting inserts on top-hat rails according to DIN EN 50022
  • Available as a complete set or as single parts (top part for use as a cable connector, bottom part for mounting on a top-hat rail)
  • QUICK & EASY top parts are available in housing types H-B 6, H-B 10, H-B 16, H-B 24. The suitable size (number of contacts) of the different insert types are listed at the connector housings (H-B 6 ..H-B 24)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

Flammability

  • UL94 V-0

Cycle of mechanical operation

  • 50

DATASHEET - PDF

Title
Size
Type
10027000 H-B 6 Q+E 10027000 EN_10027610.pdf
284 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
