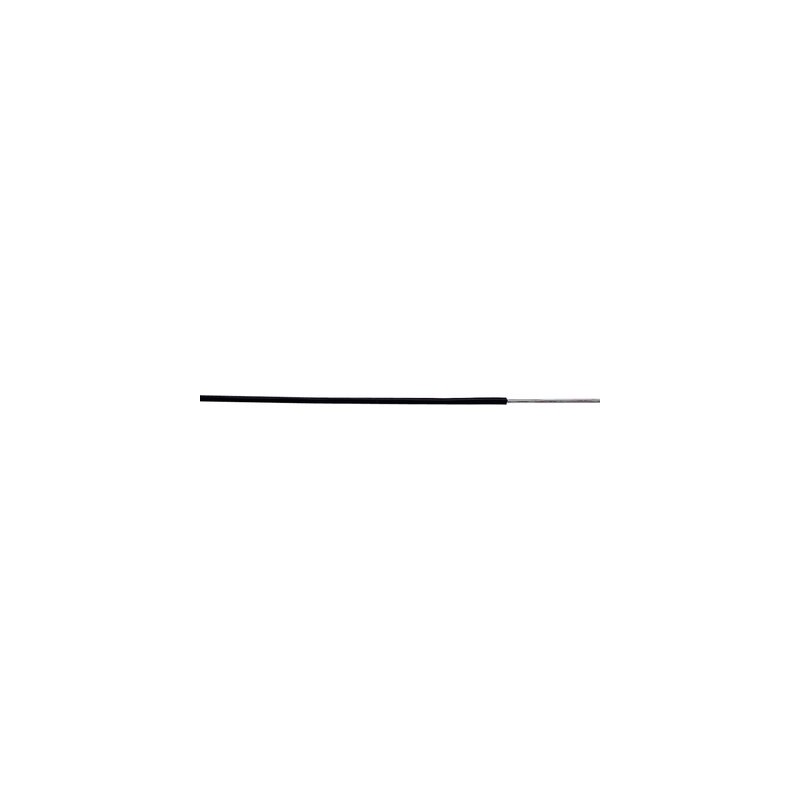

0070000 ÖLFLEX HEAT 180 SiD 1X1 GNYE LAPP ÖLFLEX HEAT 180 SiD 1X1 GNYE

Benefits

• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
• Typical fields of application
  - Control cabinet manufacturing
  - Appliances and apparatus engineering
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Furnace construction
  - Polymer processing
  - Generator and transformer manufacturing

Product features

• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Flame-retardant according IEC 60332-1-2
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Product Make-up

• Tinned solid copper wire
• Silicone-based insulation

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable

Conductor stranding

• Solid single copper conductor

Minimum bending radius

• Fixed installation: 6 x core diameter
  One bend at end of core:
  3 x cable diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 2000 V

Temperature range

• -50 °C to +180 °C
  (adequate ventilation required)
• Short-term: +200°C
