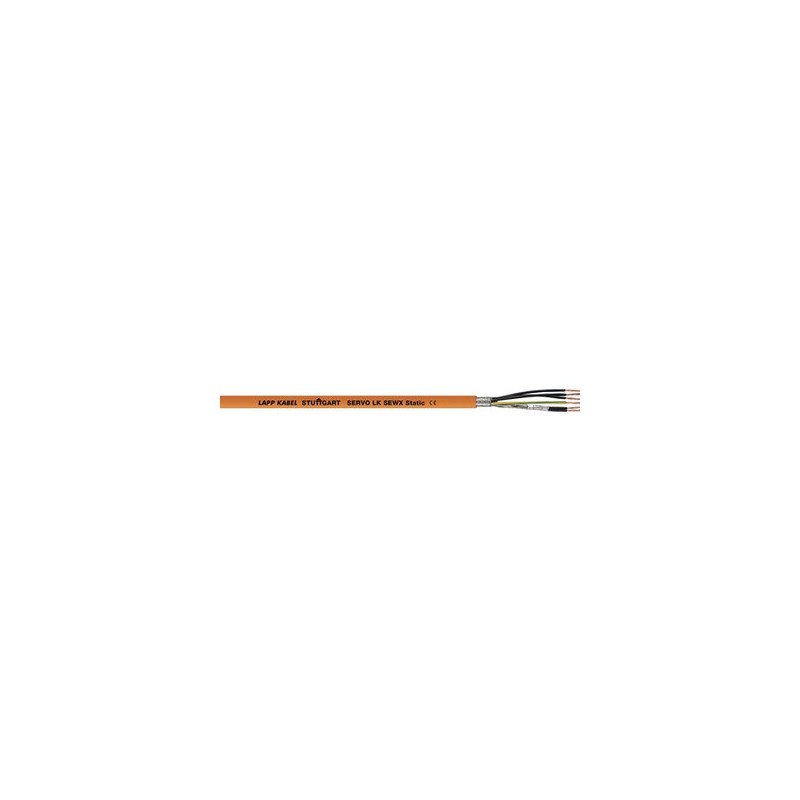

0038062 SERVO LK SEWX STATIC 4G4+(3X1STD) LAPP Screened, low capacitive servo cable with PVC outer sheath fo..

Benefits

• Multi-standard certification reduces part varieties and saves costs
• Longer cable installation lengths thanks to low mutual capacitance cable design
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• Specially designed to connect SEW servomotors
• Connecting cable between servo controller and motor
• For static and occasionally flexible use
• Industrial machinery and machine tools
• Plant engineering

Product features

• Oil-resistant
• Flame-retardant acc. to IEC 60332-1-2,
  UL VW-1 & CSA FT 1

Norm references / Approvals

• Based on VDE 0250 / 0285
• UL AWM Style 2570
• UL File No. E63634

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: TPE
• Control core triplet with laminated aluminium film and a layer of tinned-copper wires
• Cores twisted in short lay lengths
• Tinned-copper braiding
• PVC outer sheath, orange (RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Power: black cores with U, VV, WWW printing and 1 core gnye
• Control cores: black cores with numbers 1, 2 and 3

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• Power cores: IEC 750 V, UL 600 V
• Control cores: IEC 350 V, UL 600 V

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexing: -10°C to +80°C
• Fixed installation: -40°C to +80°C
