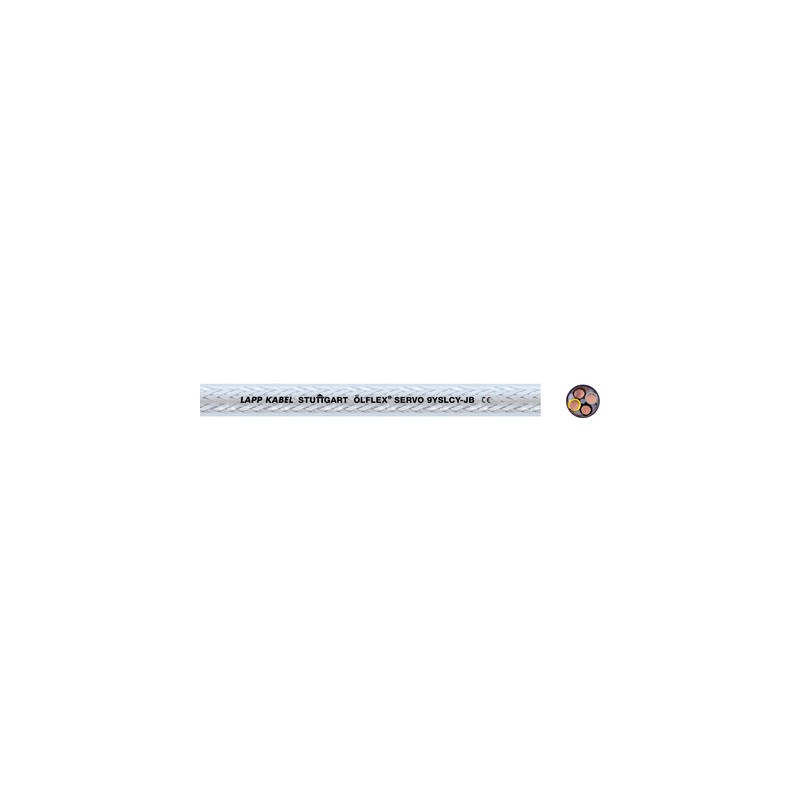

0037007 ÖLFLEX SERVO 9YSLCY-JB 4G35 LAPP ÖLFLEX SERVO 9YSLCY-JB 4G35
0037007
ÖLFLEX SERVO 9YSLCY-JB 4G35
LAPP
ÖLFLEX SERVO 9YSLCY-JB 4G35
ÖLFLEX® SERVO 9YSLCY-JB
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info
▲ÖLFLEX® SERVO 9YSLCY-JB - double screened power cable for large servo drive systems with high electrical load, UL/cUL certified
- AWM certification for USA and Canada
- 3+3 symmetry reduces common-mode interference effects and bearing currents
- CPR: Article number choice under www.lappkabel.com/cpr
Benefits
- EMC-compliant installation of power drive systems conforming to EN 61800-3
- High power transmission for large drives
- Low capacitance design enables longer cable connection between frequency converter and motor
- Symmetrical 3+3 Version supports the reduction of damaging bearing currents
- Versions with black outer sheath are suitable for outdoor use
Application range
- Connecting cable between frequency converter and motor
- In dry, damp or wet interiors
- Paper industry
- Chemical industry
- Heavy industry
Product features
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- EN/VDE +90° C PP insulation
Norm references / Approvals
- USA: AWM Style 2570 or 20886, 1kV 80°C VW-1
Canada: AWM I/II A/B 1kV 80°C FT1 - UL File No. E63634
- Based on VDE 0276, 0250, 0207
Product Make-up
- Fine-wire, bare copper conductor
- Core insulation: polypropylene (PP)
- Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
- Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
- 4-core design: transparent PVC outer sheath
- 3+3 core version: PVC outer sheath, black
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000057
- ETIM 6.0 Class-Description: Low voltage power cable
Core identification code
- Colours according to HD 308 S2 VDE 0293-308
Conductor stranding
- Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC U0/U: 600/1000 V
- UL & CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- Protective conductor of 3+3 version is gusset-filling divided between power cores
Temperature range
- Flexing:
IEC: transparent -5°C to +80°C
IEC: black -5°C to +90 °C
UL/CSA: -5°C to +80°C - Fixed installation:
IEC: transparent -40°C to +80°C
IEC: black -40°C to +90°C
UL/CSA: +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 0037007 ÖLFLEX SERVO 9YSLCY-JB 4G35 0037007 EN_0037000.pdf | 345 Kbytes |
|
