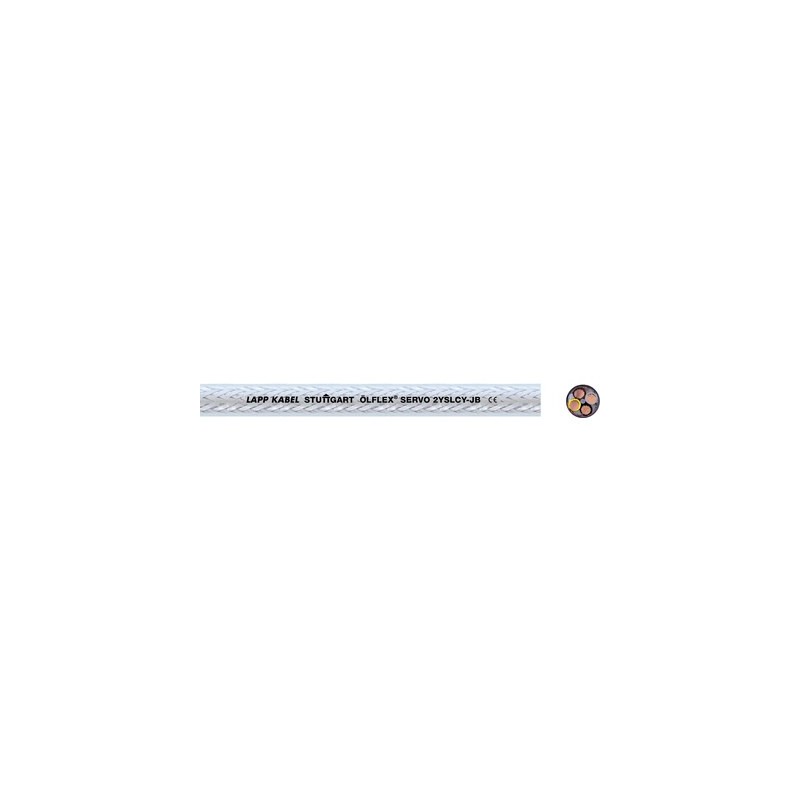

0036426 ÖLFLEX SERVO 2YSLCY-JB 4G2,5 LAPP ÖLFLEX SERVO 2YSLCY-JB 4G2,5

Benefits

• EMC-compliant installation of power drive systems conforming to EN 61800-3
• High power transmission for large drives
• Low capacitance design enables longer cable connection between frequency converter and motor
• Symmetrical 3+3 Version supports the reduction of damaging bearing currents
• Versions with black outer sheath are suitable for outdoor use

Application range

• Connecting cable between frequency converter and motor
• In dry, damp or wet interiors
• Paper industry
• Chemical industry
• Heavy industry

Product features

• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on VDE 0207 / 0250 / 0295

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: PE
• Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
• Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
• 4-core version: optional transparent or black PVC outer sheath
• 3+3 core version: PVC outer sheath, black - cold flexible

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000057
• ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000057
• ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

• Colours according to HD 308 S2 VDE 0293-308

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 600/1000 V

Test voltage

• Core/Core: 4 kV
• Core/Screen: 4 kV

Protective conductor

• G = with GN-YE protective conductor
  X = without protective conductor
• Protective conductor of 3+3 version is gusset-filling divided between power cores

Temperature range

• Flexing: -5°C to +70°C
  3+3 core version: -15°C to +70°C
• Fixed installation: -40°C to +70°C
