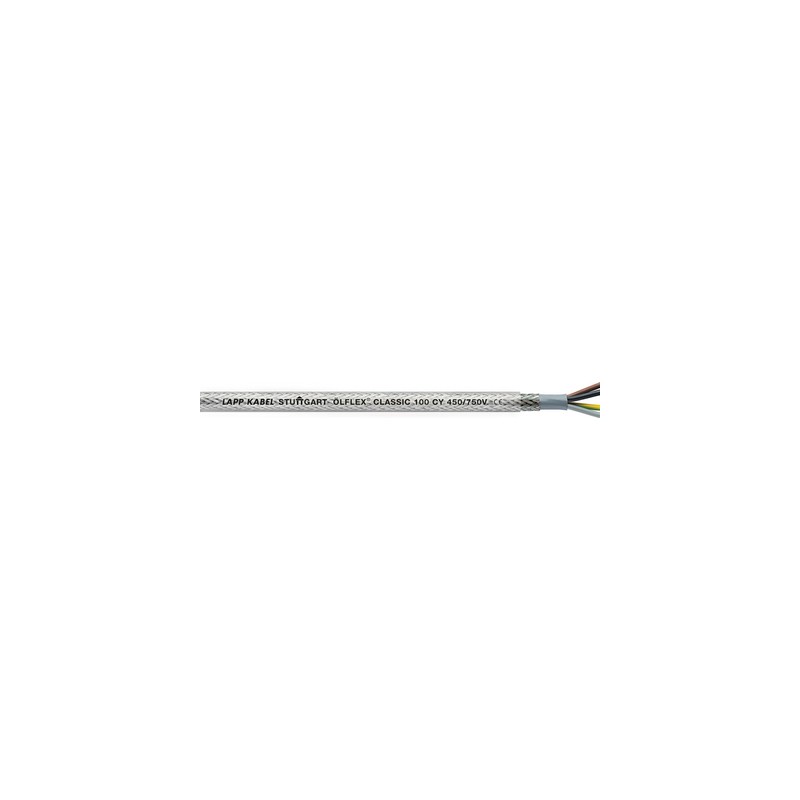

00354313 ÖLFLEX CLASSIC 100 CY 4G150 LAPP Colour-coded and screened PVC control cable

Benefits

• High electrical performance due to 4 kV test voltage
• Shielding against electromagnetic fields

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Conveyor and transport systems
• Servo drives
• In EMC-sensitive environments
  (electromagnetic compatibility)

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1
• High degree of screening
  low transfer impedance
  (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

• Based on EN 50525-2-51
• Based on EN 50525-2-11 and EN 50525-2-31

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Cores twisted in layers
• PVC inner sheath, grey
• Tinned-copper braiding
• PVC outer sheath, transparent

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: ÖLFLEX® colour code, refer to Appendix T7

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• U0/U: 450/750 VAC
  In protected and fixed installations:
  U0/U: 600/1000 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
