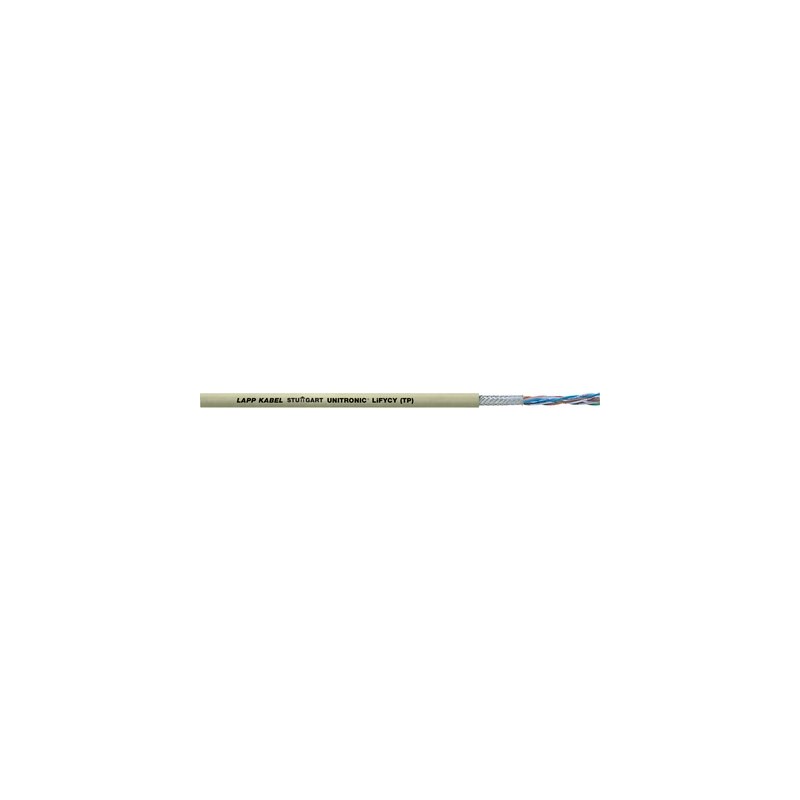

0034233 UNITRONIC LiFYCY (TP) 8x2x0,08 LAPP UNITRONIC LiFYCY (TP) 8x2x0,08
0034233
UNITRONIC LiFYCY (TP) 8x2x0,08
LAPP
1 m.
UNITRONIC LiFYCY (TP) 8x2x0,08
UNITRONIC® LiFYCY (TP)
Cables > Data and communication cable
flexible data cable transfer from special cable
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲UNITRONIC® LiFYCY (TP): Low-frequency PVC data cable, Extra-fine wire strand, 0.08 mm², Twisted pairs, Screened, Space-saving installation, IEC flame retardant
For requirements of microelectronics
Benefits
- Space-saving installation due to small cable diameters
- Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects) - Overall braid minimises electrical
interference
Application range
- For protection against high-frequency interference, screened, fine-wire cables are used in many devices.
- Wherever screened cables with smallest dimensions are required
- Examples: microelectronics, hearing aids etc.
Product features
- Very small dimensions
- Flame-retardant according IEC 60332-1-2
Product Make-up
- Extra-fine wire strand made of bare copper wires
- Core insulation made of PVC
- TP structure
- Tinned-copper braiding
- Outer sheath made of PVC
Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to Appendix T9
Mutual capacitance
- C/C approx. 80 nF/km
- C/S approx. 120 nF/km
Coupling
- At 1 kHz: approx. 300 pF/100 m
Inductivity
- approx. 0.65 mH/km
Conductor stranding
- Stranded, extra-fine wire,
cross-section 0.08 mm²
Minimum bending radius
- Occasional flexing: 7.5 x outer diameter
- Fixed installation: 4 x outer diameter
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 0034233 UNITRONIC LiFYCY (TP) 8x2x0,08 0034233 EN_0034233.pdf | 309 Kbytes |
|
