LAPPflexible data cable transfer from special cable0034231 UNITRONIC LiFYCY (TP) 4x2x0,08 LAPP UNITRONIC LiFYCY (TP) 4x2x0,08

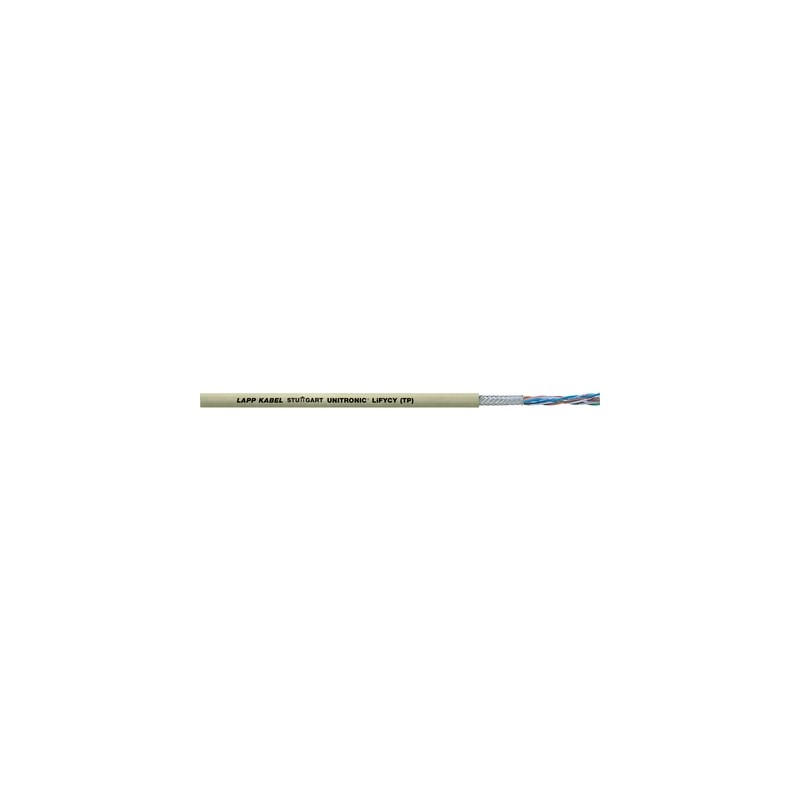

LAPP 0034231 0034231 UNITRONIC LiFYCY (TP) 4x2x0,08 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

0034231 UNITRONIC LiFYCY (TP) 4x2x0,08 LAPP UNITRONIC LiFYCY (TP) 4x2x0,08

Reference: 0034231

Catalog Number: UNITRONIC LiFYCY (TP) 4x2x0,08

Manufacturer: LAPP

Description:

UNITRONIC LiFYCY (TP) 4x2x0,08
UNITRONIC® LiFYCY (TP)

Categories:

  • Cables > Data and communication cable
  • LAPP > flexible data cable transfer from special cable

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

UNITRONIC® LiFYCY (TP): Low-frequency PVC data cable, Extra-fine wire strand, 0.08 mm², Twisted pairs, Screened, Space-saving installation, IEC flame retardant

For requirements of microelectronics

Benefits

  • Space-saving installation due to small cable diameters
  • Decoupling of circuits by means of
    twisted-pair (TP) design (crosstalk effects)
  • Overall braid minimises electrical
    interference

Application range

  • For protection against high-frequency interference, screened, fine-wire cables are used in many devices.
  • Wherever screened cables with smallest dimensions are required
  • Examples: microelectronics, hearing aids etc.

Product features

  • Very small dimensions
  • Flame-retardant according IEC 60332-1-2

Product Make-up

  • Extra-fine wire strand made of bare copper wires
  • Core insulation made of PVC
  • TP structure
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • DIN 47100, refer to Appendix T9

Mutual capacitance

  • C/C approx. 80 nF/km
  • C/S approx. 120 nF/km

Coupling

  • At 1 kHz: approx. 300 pF/100 m

Inductivity

  • approx. 0.65 mH/km

Conductor stranding

  • Stranded, extra-fine wire,
    cross-section 0.08 mm²

Minimum bending radius

  • Occasional flexing: 7.5 x outer diameter
  • Fixed installation: 4 x outer diameter

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
