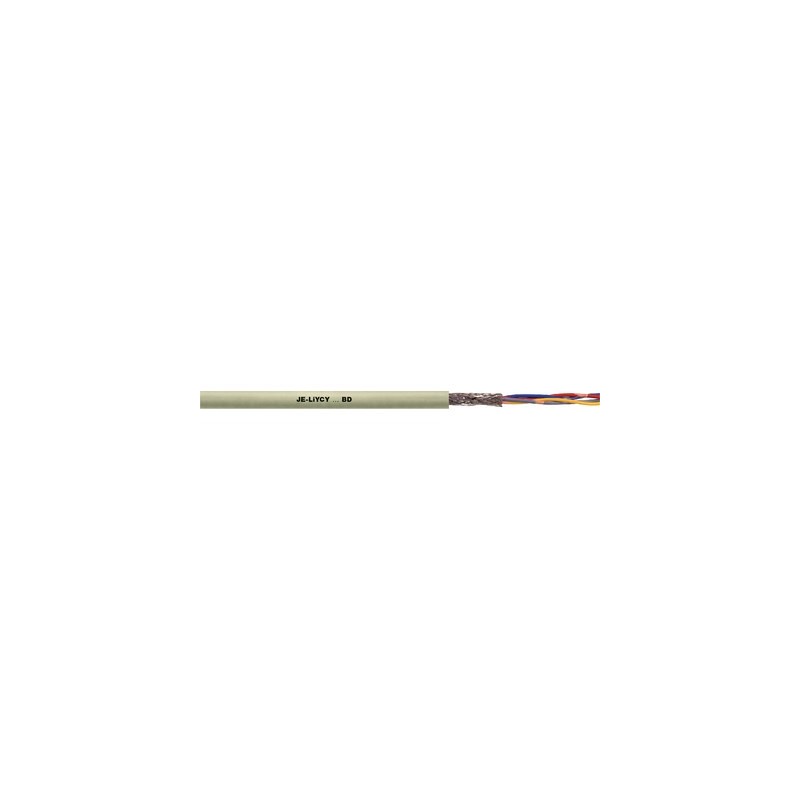

0034200 JE-LiYCY...BD 2x2x0,5 LAPP JE-LiYCY...BD 2x2x0,5

Benefits

• Overall braid minimises electrical
  interference
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• Connection cable for use in electronics and in measurement, control and signal applications
• This cable is also used as a pulse and data transmission cable
• JE-LiYCY...BD has also proved to be an efficient connection cable for telephone systems, e.g. paging and intercom systems.
• For fixed installation on and under plaster, in dry and damp rooms

Product features

• The 2-pair version (2 x 2 x 0.5) is twisted into a star quad
• Flame-retardant according IEC 60332-1-2
• JE-LiYCY...BD EB:
  For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2

Norm references / Approvals

• In accordance with DIN VDE 0815type JE-LiYCY...BD

Product Make-up

• 7-wire bare stranded copper conductor
• Core insulation made of PVC
• 2 cores twisted into a pair, and 4 pairs into units/ bundles (for 2 x 2 x 0.5 as star quad cable)
• Bundles twisted in layers,
  foil wrapping,
  screening braid made of tinned copper wires
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000829
• ETIM 5.0 Class-Description: Signal-/telecommunications cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000829
• ETIM 6.0 Class-Description: Signal-/telecommunications cable

Core identification code

• according to VDE 0815,
  refer to Appendix T10

Mutual capacitance

• max. 100 nF/km

Coupling

• approx. 200 pF/100 m

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Multi-wire, 7 x 0.3mm

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 5 x outer diameter

Test voltage

• Core/core: 500 V
• Core/screen: 2000 V

Loop resistance

• max. 78.4 ohm/km

Temperature range

• Occasional flexing: -5°C to +50°C
• Fixed installation: -30°C to +70°C
