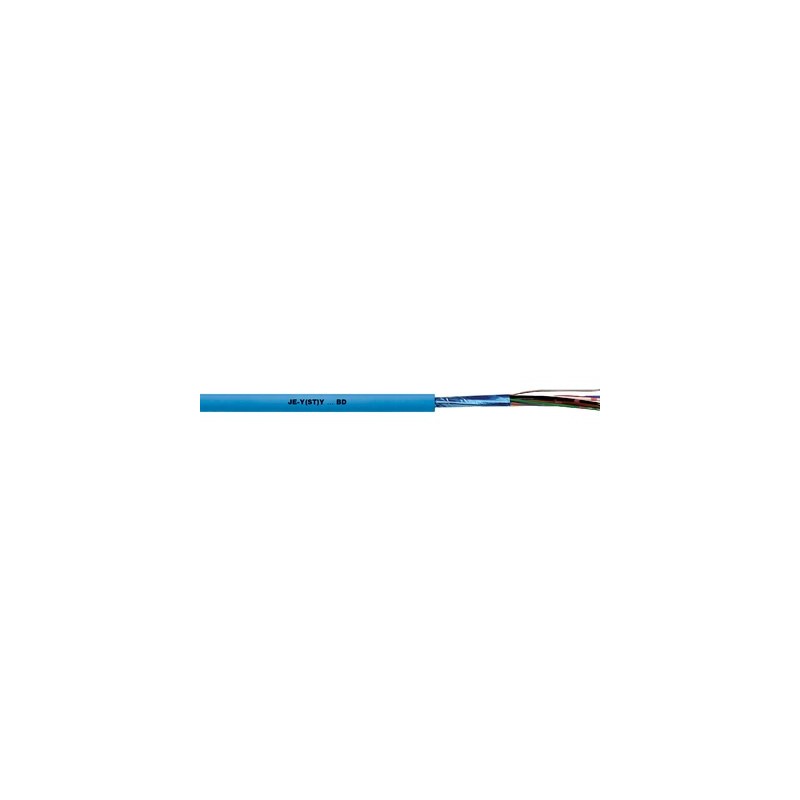

0034122 JE-Y(ST)Y...BD EB 8X2X0,8 LAPP JE-Y(ST)Y...BD EB 8X2X0,8

Benefits

• Perfect for cost-effective installation, e.g. connections with insulation displacement technology (IDC).
• Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• Connection cable for fixed installation in industrial control systems, as required in measurement, control, signalling and data applications
• Industrial electronics
• For fixed installation on and under plaster, in dry and damp rooms

Product features

• The 2-pair version (2x2x0.8) is twisted into a star quad
• Flame-retardant according IEC 60332-1-2
• JE-Y(ST)Y...BD EB:
  For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2

Norm references / Approvals

• In accordance with DIN VDE 0815type JE-Y(ST)Y...BD

Product Make-up

• Solid bare copper conductor
• Core insulation made of PVC
• 2 cores twisted into a pair, and 4 pairs into units (for 2 x 2 x 0.8 as star quad cable)
• Foil wrapping,
  static screening made of aluminium-laminated plastic film with copper drain wire
• Outer sheath made of PVC
  Outer sheath colour: sky blue (RAL 5015)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000829
• ETIM 5.0 Class-Description: Signal-/telecommunications cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000829
• ETIM 6.0 Class-Description: Signal-/telecommunications cable

Core identification code

• according to VDE 0815,
  refer to Appendix T10

Mutual capacitance

• max. 100 nF/km

Coupling

• approx. 200 pF/100 m

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Single-wire (solid conductor)
• 0.8 mm: 0.50 mm²

Minimum bending radius

• Fixed installation: 6 x outer diameter

Test voltage

• Core/Core: 1000 V
• Core/screen: 2000 V

Loop resistance

• max. 73.2 Ohm/km

Temperature range

• Occasional flexing: -5°C to +50°C
• Fixed installation: -30°C to +70°C
