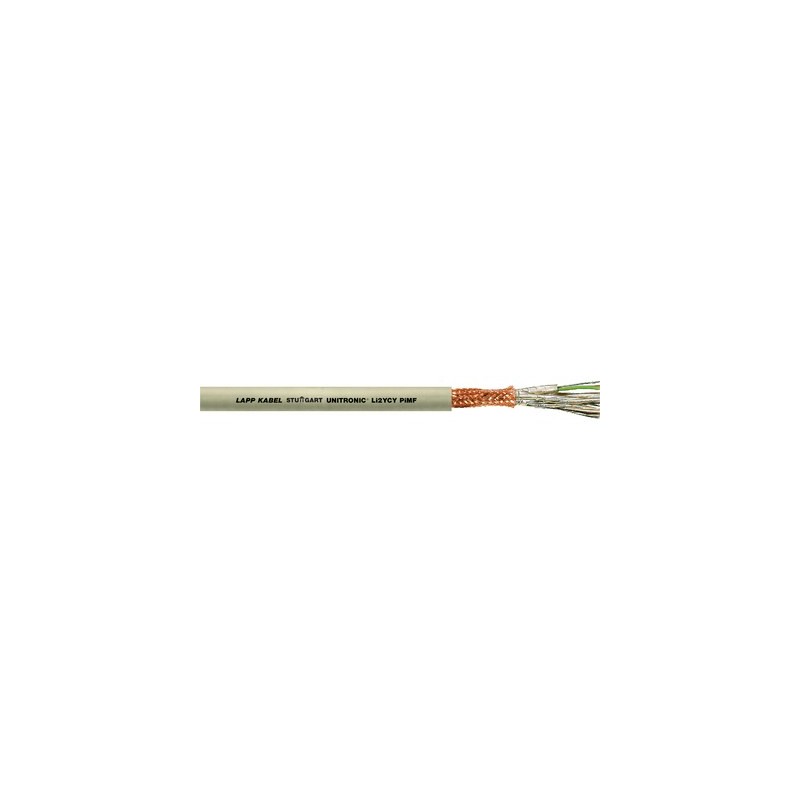

0034060 UNITRONIC Li2YCY PiMF 2x2x0,5 LAPP UNITRONIC Li2YCY PiMF 2x2x0,5

Benefits

• Data transmission cable with low capacitance, pair screening and overall copper braiding
• Particularly suitable for wiring data systems and controls in large industrial plants
• Individually screened pairs and the overall braid minimise electrical interference
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• For enhanced requirements in near-end cross-talk attenuation and high electrical interference in the circuits
• Suitable for the transmission with varying in frequency and voltage or sensitive signals
• Can be used multifunctional in electronics of computer systems, electronic control equipment, office machines, balances, etc.
• For measurement value transmission and serial 2-wire interfaces
• Intended for limited flexible use, and for fixed installation in dry or damp interiors

Product features

• Flame-retardant according IEC 60332-1-2

Product Make-up

• 7-wire or fine-wire (from 1 mm²) strands made of bare copper wires
• Core insulation made of polyethylene (PE)
• Cores twisted into pairs
• Foil wrapping, static screening made of aluminium-laminated plastic film with copper drain wire for each pair
• Bare copper screen braiding
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• 0.22 mm²-0.5 mm²:
  according to DIN 47100, see table T9
• 1.0 mm²:
  a-core: white, b-core: black

Mutual capacitance

• At 800 Hz:
  0.22 mm²: max. 70 nF/km
  0.34 mm²: max. 70 nF/km
  0.5 mm²: max. 75 nF/km
  1.0 mm²: max. 85 nF/km

Inductivity

• Approx. 0.4 mH/km

Conductor stranding

• Stranded conductor, based on VDE 0881, 7-wire

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 10 x outer diameter

Test voltage

• Core/core: 2000 V
• Core/screen: 1000 V

Characteristic impedance

• approx. 85 Ohm (> 1 MHz)

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
