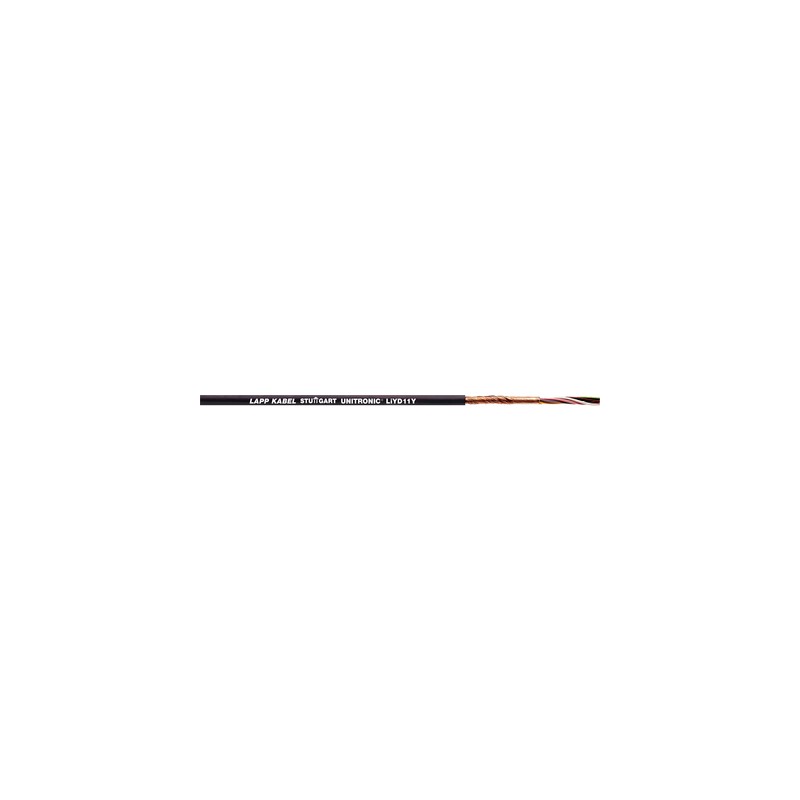

0033202 UNITRONIC LiYD11Y 2x0,14 LAPP UNITRONIC LiYD11Y 2x0,14

Benefits

• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

• Intended for use in industrial environments, where cables should have excellent mechanical and chemical resistance.
• Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
• Can be used in dry or damp rooms
• Outdoor use is possible within the indicated operating temperature range

Product features

• PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion
• Low-adhesive surface
• Good UV-resistance
• Flame retardant according to IEC 60332-2-2
• Spiral versions with similar properties are also availabe: "UNITRONIC® SPIRAL"

Norm references / Approvals

• Based on VDE 0812

Product Make-up

• Extra-fine wire strand made of bare copper wires
• Core insulation made of PVC
• Wrapped with bare copper wires
• Outer sheath made of PUR
  Outer sheath colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• DIN 47100 without colour repetition, refer to Appendix T9

Mutual capacitance

• C/C approx. 140 nF/km
• C/S approx. 150 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded, extra-fine wire

Minimum bending radius

• Occasional flexing: 10 x outer diameter
• Fixed installation: 6 x outer diameter

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
