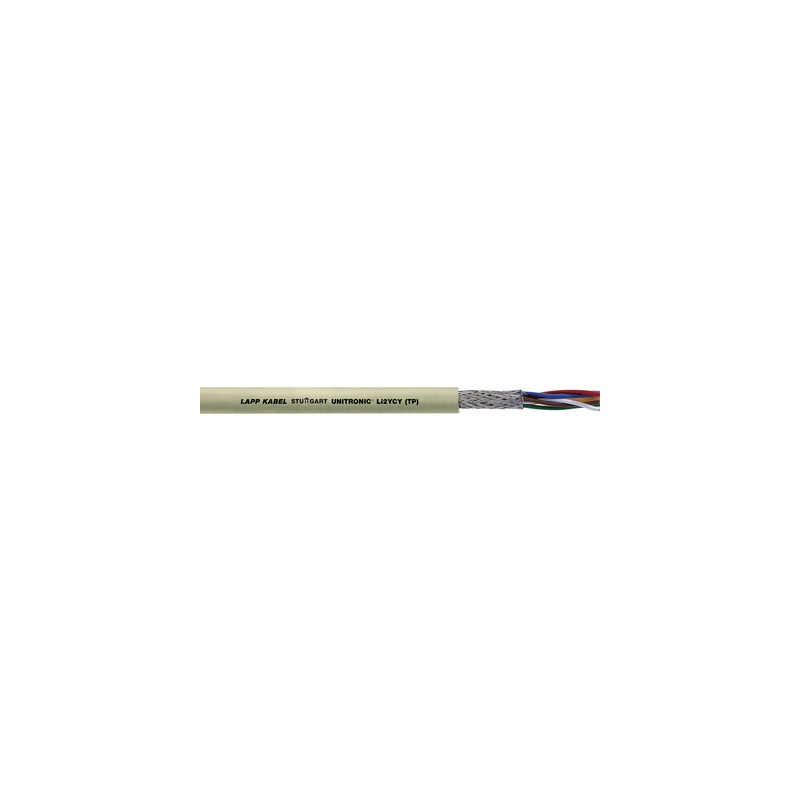

0031325 UNITRONIC Li2YCY (TP) 2x2x0,34 LAPP UNITRONIC Li2YCY (TP) 2x2x0,34

Benefits

• Overall braid minimises electrical
  interference
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• Particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second, and is qualified for the RS422 and RS485 interfaces.
• For fixed and limited flexible installation
• Can be used in dry or damp rooms
• Signal-, control- and measuring cable,for transmission of low, sensitive signals and high bit rates
• UNITRONIC^®
  Li2YCYv (TP)with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous

Product features

• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on VDE 0812

Product Make-up

• 7-wire bare stranded copper conductor
• Core insulation made of polyethylene (PE)
• TP structure
• Tinned-copper braiding
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• DIN 47100, refer to Appendix T9

Mutual capacitance

• At 800 Hz: max. 60 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded conductor, based on VDE 0881, 7-wire

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 6 x outer diameter

Short-range crosstalk attenuation

• Up to 1 MHz min. 50 dB
• Up to 10 MHz min. 40 dB

Test voltage

• Core/core: 2000 V
• Core/screen: 1000 V

Characteristic impedance

• 100 ± 15 Ohm (> 1 MHz)

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
