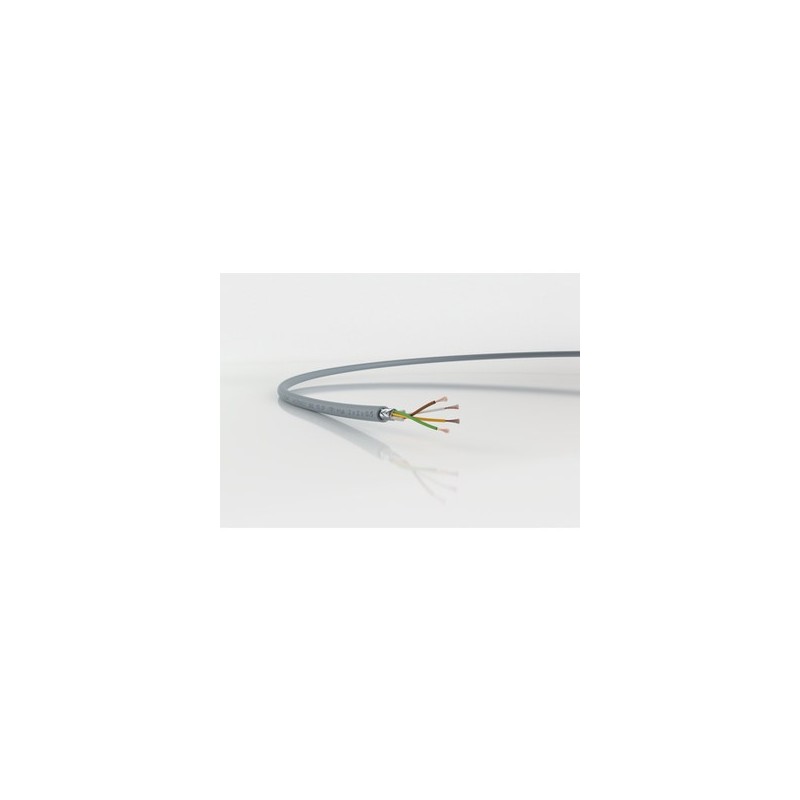

0030910 UNITRONIC FD CP (TP) plus 2X2X0,14 LAPP UNITRONIC FD CP (TP) plus 2X2X0,14

Benefits

• Wide temperature range for applications in harsh climatic environments
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)
• UL AWM voltage rating 1000V in case of internal wiring allows for internal laying next to power cables with applied UL rating of 1kV
• In the USA inside of industrial machines, per NFPA 79, 2015 Ed., 12.9.2 (condition 3 under 12.9.2: Through 1 mm² and <16 AWG)

Application range

• Suitable for use in measuring, control and regulating circuits
• Linear robots, automated handling equipment
• Drag chain use - in case of horizontal installation travel distances up to 100 m
• For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Halogen-free, has low capacitance and is flexible down to -40°C
• PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
• Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant
• Flame retardance: IEC 60332-1-2, VW-1, FT2
• Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter

Norm references / Approvals

• cULus CMX certified by UL (UL: E236660)
• cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Product Make-up

• Extra-fine wire strand made of bare copper wires
• Core insulation: Based on Polyolefin
  TP structure
• Non-woven wrapping
• Tinned-copper braiding
• Outer sheath made of special PUR compound
  Outer sheath colour: grey (RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• DIN 47100, refer to Appendix T9

Mutual capacitance

• Up to 0.5 mm²: 60 nF/km
• Up to 1.0 mm²: 70 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded, extra-fine wire
• From 0.5 mm²: extra-fine wire according to IEC 60228 class 6

Torsion movement in WTG

• TW-0 & TW-2, refer to Appendix T0

Minimum bending radius

• Flexing: 7.5 x outer diameter
• Fixed installation: 4 x outer diameter

Test voltage

• Core/core: 1500 V rms
• Core/screen: 500 V

Temperature range

• Flexing: -40°C to +80°C
• Fixed installation: -40°C to +80°C
  cULus CMX: max. +75°C
  cRUus AWM: max. +80°C
