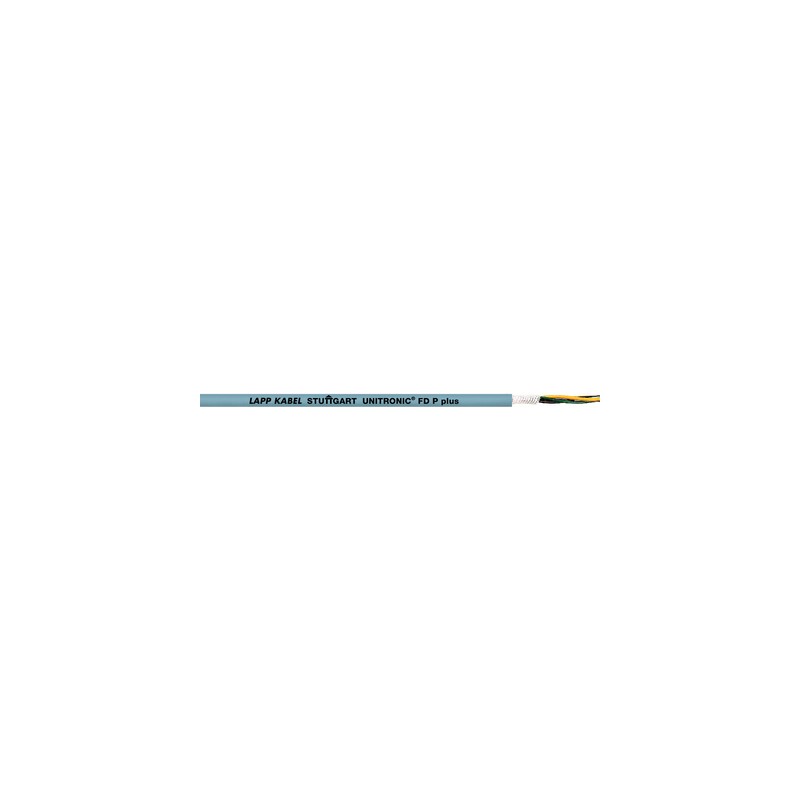

0028680 LAPP UNITRONIC FD P PLUS A 12X0,25

proceeds

• Proven and recognized reliability
• Extended temperature range for applications in severe environmental conditions
• UL-AWM 1000V rated voltage for protected internal wiring (e.g. within the industrial area) allows internal laying directly next to the power cables with applied UL rated voltage of 1 kV
• In the U.S. inside industrial machinery and on energy chains within the industrial area (subject to AHJ approval), according to NFPA 79, section 12.9.2 (exception 3 under 12.9.2: up to 1 mm2 and <16 AWG)

Scope of use

• Ultra-flexible data cable with PUR outer cover, for the highest demands of tool life, even in a harsh weather environment
• Use in measurement, command and control circuits.
• Sophisticated design for high-performance chain/ track use
• For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3

Product features

• PUR outer shell, resistant to cuts and incisions, resistant to mineral oils and abrasion derived from use in energy chains.
• In general, for outdoor use (not in North America), thanks to UV and ozone resistance
• Non-flame propagator: IEC 60332-1-2, FT2 (horizontal flammability test)
• Halogen-free, has a low capacitance and is flexible up to -40°C
• Low adhesion surface, resistant to hydrolysis and microbes, oil resistant

Reference Standards / Approvals

• Based on VDE 0812
• cRUus AWM, UL certified (UL: E63634): UL AWM Style 21576, as well as AWM A/B I/II

Product composition

• Super-fine braided conductors of bare copper wires (class 6)
• Conductor isolation: polyolefin base
• Nonwoven envelope
• Outer shell made with special PUR compound
  Outer shell color: grey (RAL 7001)

ETS Classification 5

• ETIM 5.0 Class-ID: EC000830
• ETIM Class 5.0 Description: Data Cable

ETTIM Rating 6

• ETIM 6.0 Class ID: EC000830
• ETIM 6.0 Class-Description: Data Cable

Driver Identification Code

• DIN 47100 (Table T9 of the Appendix)

Mutual capacity

• Driver/Driver approx. 60 nF/km

Inductance

• Approx. 0.65 mH/km

Driver training

• Conductor, superfine thread

Minimum radius of curvature

• Mobile: 5 times the outside diameter
• Fixed installation: 3 x outer diameter

Test voltage

• 1500 V

Temperature range

• Bending: -40°C to +80°C
• Fixed installed: -40°C to +80°C
  cRUus AWM: max. +80 °C
