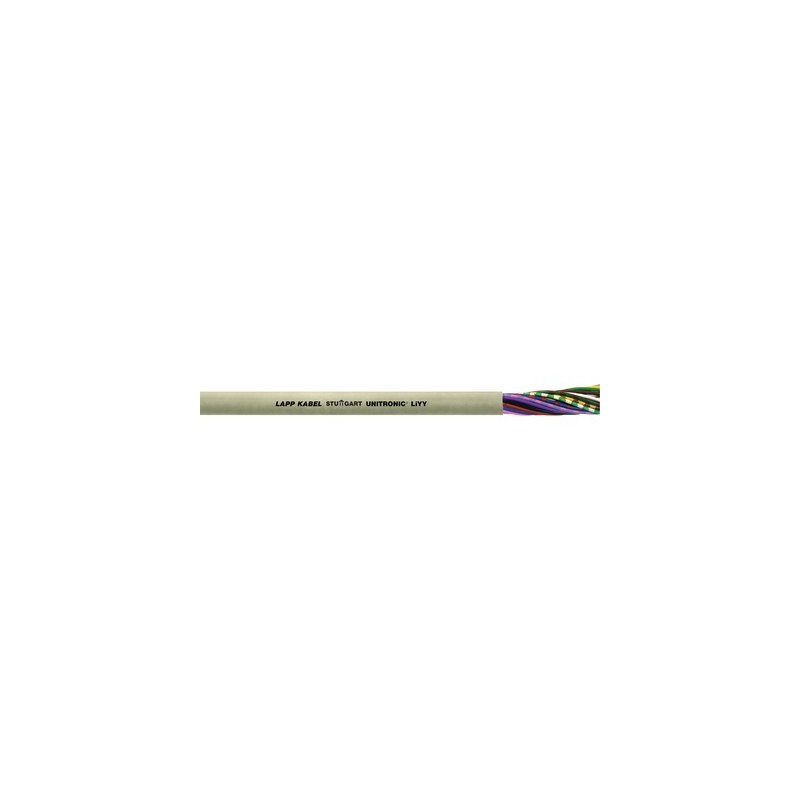

0028420 UNITRONIC LiYY 20x0,34 LAPP UNITRONIC LiYY 20x0,34

Benefits

• Space-saving installation due to small cable diameters
• Multifunctional application possibilities
• Depending on the quantity, the outer sheath can also be produced in other colours to match your application needs

Application range

• UNITRONIC® LiYY is also used as a control and signal cable in electronics of computer systems, electronic control equipment, office machines, balances, etc.
• Dry or damp rooms
• Occasional flexing

Product features

• Despite the large number of cores, LiYY data cables have small outer diameters
• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on VDE 0812

Product Make-up

• Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
• Core insulation made of PVC
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• DIN 47100 without colour repetition, refer to Appendix T9

Mutual capacitance

• Approx. 120 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded, fine-wire
  0.34 mm²: 7-wire

Minimum bending radius

• Occasional flexing: 10 x outer diameter
• Fixed installation: 4 x outer diameter

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
