0028015 UNITRONIC 100 10x0,14 LAPP UNITRONIC 100 10x0,14
0028015
UNITRONIC 100 10x0,14
LAPP
UNITRONIC 100 10x0,14
UNITRONIC® 100
Cables > Data and communication cable
flexible data cable transfer from special cable
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info

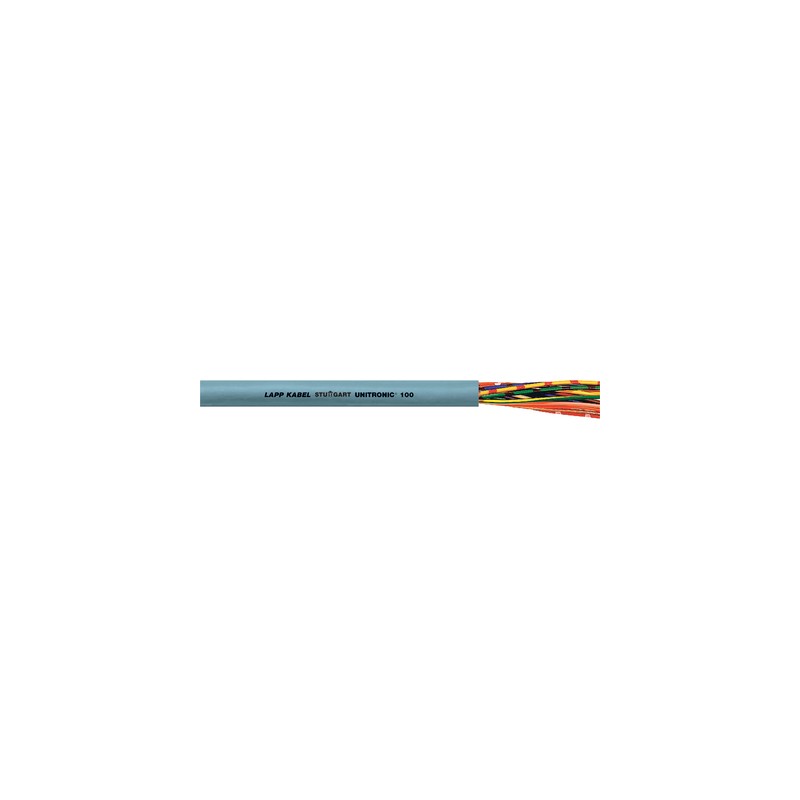

▲UNITRONIC® 100: Low-frequency PVC data cable, LAPP UNITRONIC® core identification code, Grey, Flame retardant, For various applications
UNITRONIC® colour code
with protective conductor
Application range
- These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, balances etc. and wherever the thinnest possible control cables are required.
Product features
- Robust, flexible and resistant outer sheath
- Small outer diameter despite high number of cores
- Flame-retardant according IEC 60332-1-2
- 3 cores with earth wire (green-yellow)
2 cores (black/blue)
Norm references / Approvals
- Based on: VDE 0814 or VDE 0812
Product Make-up
- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of PVC
- Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Refer to Appendix T7 for the
UNITRONIC® colour codes
Mutual capacitance
- Approx. 120 nF/km
Inductivity
- approx. 0.7 mH/km
Conductor stranding
- Stranded, fine-wire
0.34 mm²: 7-wire
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Protective conductor
- Green-yellow
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 0028015 UNITRONIC 100 10x0,14 0028015 EN_0028015.pdf | 189 Kbytes |
 |
