LAPPflexible data cable transfer from special cable0028014 UNITRONIC 100 7x0,14 LAPP UNITRONIC 100 7x0,14

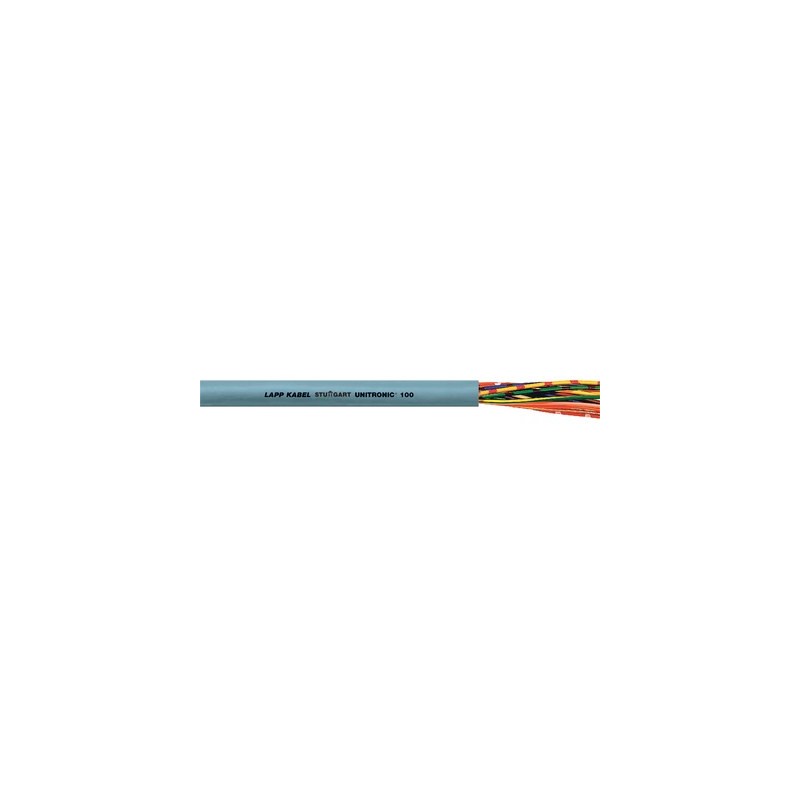

LAPP 0028014 0028014 UNITRONIC 100 7x0,14 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

0028014 UNITRONIC 100 7x0,14 LAPP UNITRONIC 100 7x0,14

Reference: 0028014

Catalog Number: UNITRONIC 100 7x0,14

Manufacturer: LAPP

Description:

UNITRONIC 100 7x0,14
UNITRONIC® 100

Categories:

  • Cables > Data and communication cable
  • LAPP > flexible data cable transfer from special cable

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 0,99 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

UNITRONIC® 100: Low-frequency PVC data cable, LAPP UNITRONIC® core identification code, Grey, Flame retardant, For various applications

UNITRONIC® colour code
with protective conductor

Application range

  • These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, balances etc. and wherever the thinnest possible control cables are required.

Product features

  • Robust, flexible and resistant outer sheath
  • Small outer diameter despite high number of cores
  • Flame-retardant according IEC 60332-1-2
  • 3 cores with earth wire (green-yellow)
    2 cores (black/blue)

Norm references / Approvals

  • Based on: VDE 0814 or VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Outer sheath made of PVC
    Outer sheath colour: grey (RAL 7001)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Refer to Appendix T7 for the
    UNITRONIC® colour codes

Mutual capacitance

  • Approx. 120 nF/km

Inductivity

  • approx. 0.7 mH/km

Conductor stranding

  • Stranded, fine-wire
    0.34 mm²: 7-wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 4 x outer diameter

Protective conductor

  • Green-yellow

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
