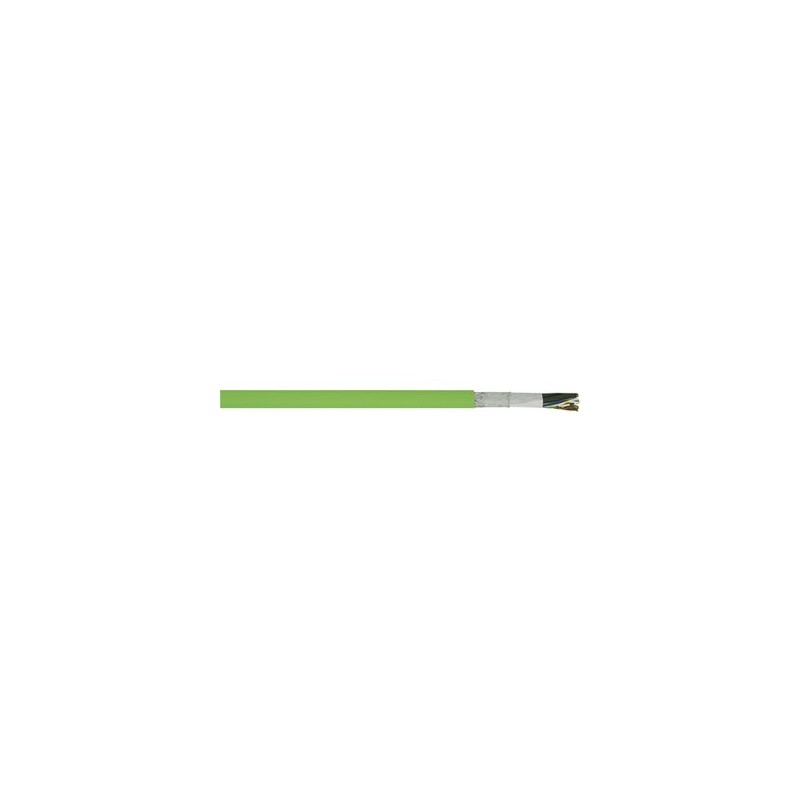

00277161 SERVO LK SMS FX8PLUS-1BD71 LAPP Motor and resolver/encoder cables certified

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Multi-standard certification reduces part varieties and saves costs
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

• Connecting cable between servo controller and encoder/resolver
• Connecting cable between servo controller and motor
• In power chains or moving machine parts
• For use in assembling & pick-and-place machinery
• Particularly in wet areas of machine tools and transfer lines
• Assembly lines, production lines, in all kinds of machines

Product features

• Dynamic power chain performance:
  Acceleration up to 50 m/s².
  Travel speeds up to 5 m/s.
  Travel distances up to 100 m.
• Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter
• Abrasion and cut-resistant, halogen-free, oil-resistant
• Flame-retardant according to IEC 60332-1-2 & CSA FT1

Norm references / Approvals

• Power cable:
  VDE-registered
  UL AWM Style 21223
  CSA AWM I/II, A/B 1000 V 80° FT 1
• Signal cables:
  UL/CSA AWM Style 20236
• UL File No. E63634
• For horizontal travel distances up to 100m
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine strand made of copper wires:
  > Signal cables: tinned
  > Power cables: bare
• Core insulation: polypropylene (PP)
• Tinned-copper braiding
• PUR outer sheath
• Signal cables: green (RAL 6018)
• Servo cable: orange (RAL 2003)
• Refer to data sheet for more details

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Details see datasheet

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Minimum bending radius

• Power cable:
  Fixed: 4 x Diameter
  Dynamic:
  1.5 mm² - 16 mm²: 7.5 x Diameter
  25 mm² - 50 mm²: 10 x Diameter
  Signal cable:
  Fixed: 4 x Diameter
  Dynamic: 8 x Diameter

Nominal voltage

• Signal cables:
  30 V AC/DC
• Power cable:
  - Power cores:
  U0/U 600/1000 V (IEC)
  1000 V (UL/CSA)
  - Control cores:
  24 V AC/DC (IEC)
  1000 V (UL/CSA)

Test voltage

• Power cable: 4 KV
• Signal cables: 500 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexing: -20°C to +60°C
• Fixed installation: -50°C to +80°C

Bending cycles & operation parameters

• 10 mio. cycles
