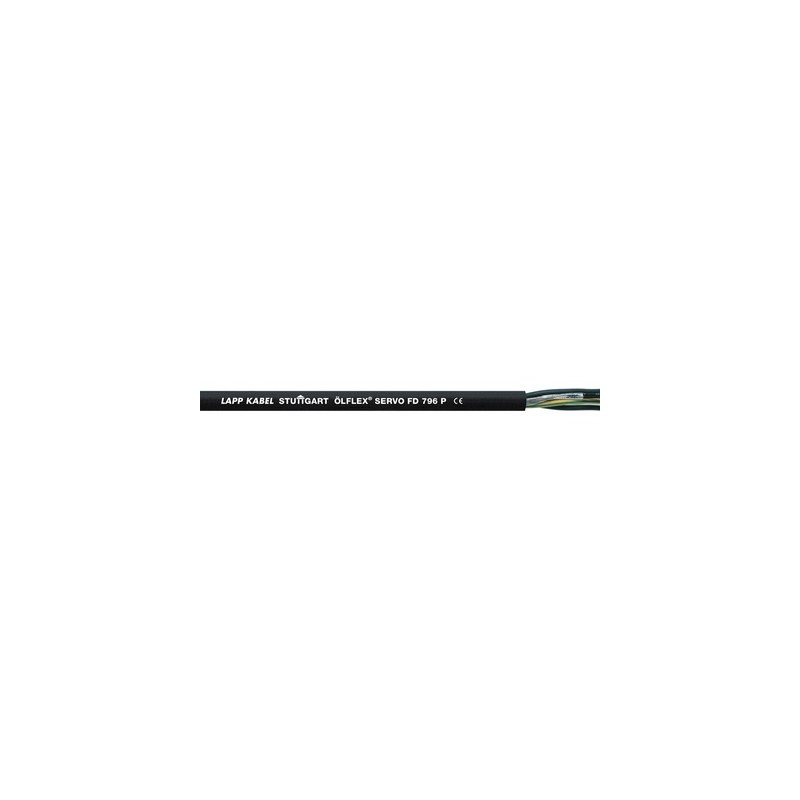

0025319 ÖLFLEX SERVO FD 796P 4G1,5+(2x1,5) LAPP ÖLFLEX SERVO FD 796P 4G1,5+(2x1,5)

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Low capacitance design enables longer cable connection between frequency converter and motor
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• Multi-standard certification reduces part varieties and saves costs

Application range

• Connecting cable between servo controller and motor
• In power chains or moving machine parts
• For use in assembling & pick-and-place machinery
• Particularly in wet areas of machine tools and transfer lines
• For indoor and outdoor use

Product features

• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Halogen-free materials
• Abrasion and notch-resistant
• Oil-resistant

Norm references / Approvals

• VDE - reg - no. 8591 (≥ 4G1,5)
  UL AWM Style 20234
  cULus AWM I/II A/B, 1000V 80° FT1
  CSA AWM I/II A, 1000V 80° FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: polypropylene (PP)
• According to P/N individual design: Power cores with one or with two control pair(s), twisted together in short lay length
• Non-woven wrapping
• PUR outer sheath, black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
• Single-paired versions: black; white
  Double-paired versions: black with white numbers 5; 6; 7; 8
  0,34mm² pairs: WH/BN/GN/YE

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Minimum bending radius

• Flexing: up from 7.5 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• IEC U0/U: 600/1000 V
• UL & CSA: 1000 V

Test voltage

• Core/Core: 4 kV
• Core/Screen: 2 kV

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexing: -40°C to +90°C
  (UL/CSA: +80°C)
• Fixed installation: -50°C to +90°C
  (UL/CSA: +80°C)

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
