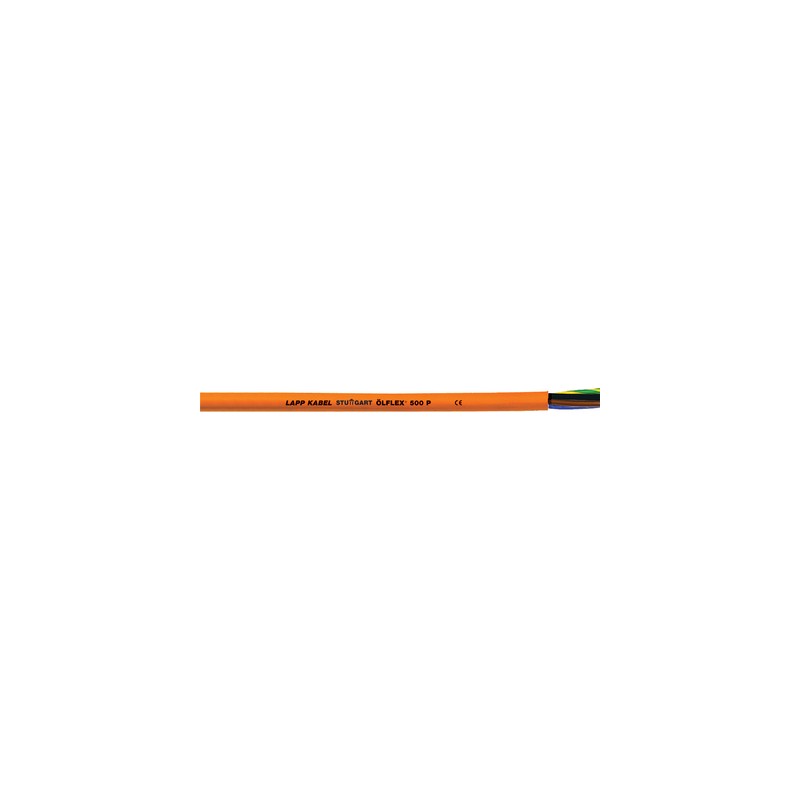

00123473 ÖLFLEX 500 P 4G1 LAPP ÖLFLEX 500 P 4G1

Benefits

• Increased durability under harsh conditions thanks to robust PUR outer sheath material
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• High flexibility simplifies installation when space is at a premium and use with electrical handheld devices
• The signal colour of the outer sheath increases safety and visual perception

Application range

• Portable handheld electrical devices such as drills, sanders, jig saws or grinders
• Portable devices for the home and garden
• Connection and extension cables

Product features

• Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
• Abrasion and notch-resistant
• Flexible down to -40°C
• Halogen-free and flame-retardant
  (IEC 60332-1-2)
• Resistant to hydrolysis and microbes

Norm references / Approvals

• Based on VDE 0285
• Suitable for use in fresh water down to 10 m depth at max. water temperature of +40 °C according to EN 50565-2

Product Make-up

• Extra-fine wire strand made of bare copper
• Core insulation: TPE compound
• Cores twisted together
• PUR outer sheath
• Sheath colour: orange

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Colours according to VDE 0293-308, refer to Appendix T9

Conductor stranding

• Extra-fine wire acc. to VDE 0295, class 6/ IEC 60228 class 6

Minimum bending radius

• Occasional flexing: 10 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 3000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -40°C to +80°C
• Fixed installation: -50°C to +80°C
