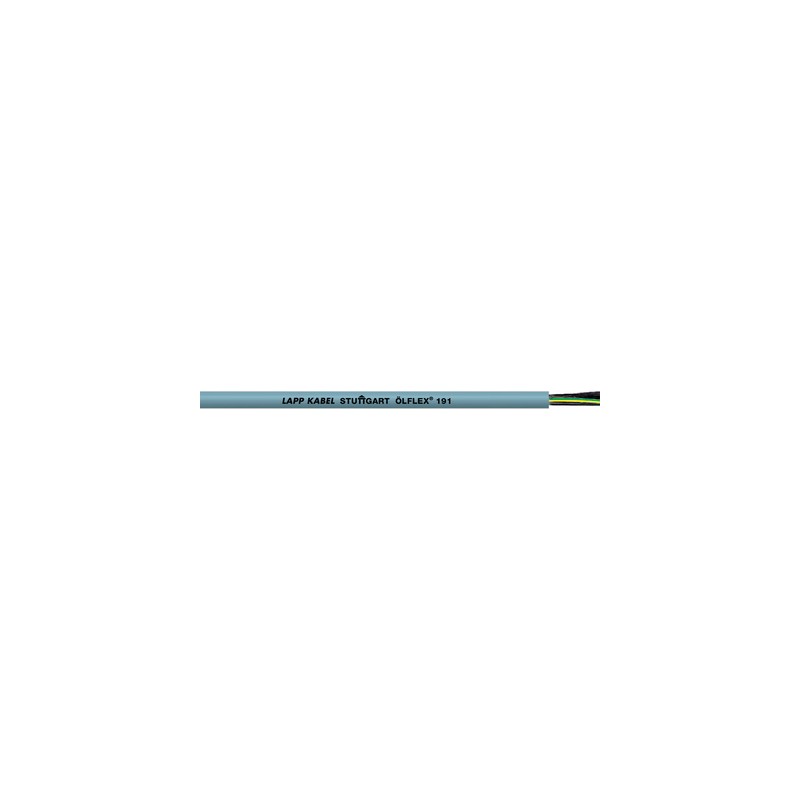

0011136 ÖLFLEX 191 2X1,5 LAPP ÖLFLEX 191 2X1,5

Benefits

• High electrical performance due to 4 kV test voltage
• For various applications

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Machine tools
• Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
• For fixed installation under medium mechanical load conditions, and applications with occasional flexing at free, non-continuously recurring movement without tensile load or compulsory guidance
• Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79: please see the catalogue appendix table T29

Product features

• Flame-retardant according to IEC 60332-1-2
  and UL 1581 §1061 Cable Flame Test
• Oil-resistant according to EN 50363-4-1: TM5

Norm references / Approvals

• UL AWM Style 21098
  CSA AWM I A/B II A/B
• Multi-standard cables have conductor strands with nominal sizes in mm² or AWG/kcmil. The master size is mentioned in the table below, while the equivalent size of the other system can be found in the Appendix T16 of this catalogue. For this related secondary size the cross-section of the conductor mostly works out to be greater than the
  specified nominal value.

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC core insulation
• Cores twisted in layers
• PVC outer sheath, high oil-resistance, grey (similar to RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• HAR U0/U: 300/500 V
• UL/CSA: 600 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
  UL/CSA: -5°C to +90°C
• Fixed installation: -40°C to +70°C
  UL/CSA: +90°C
