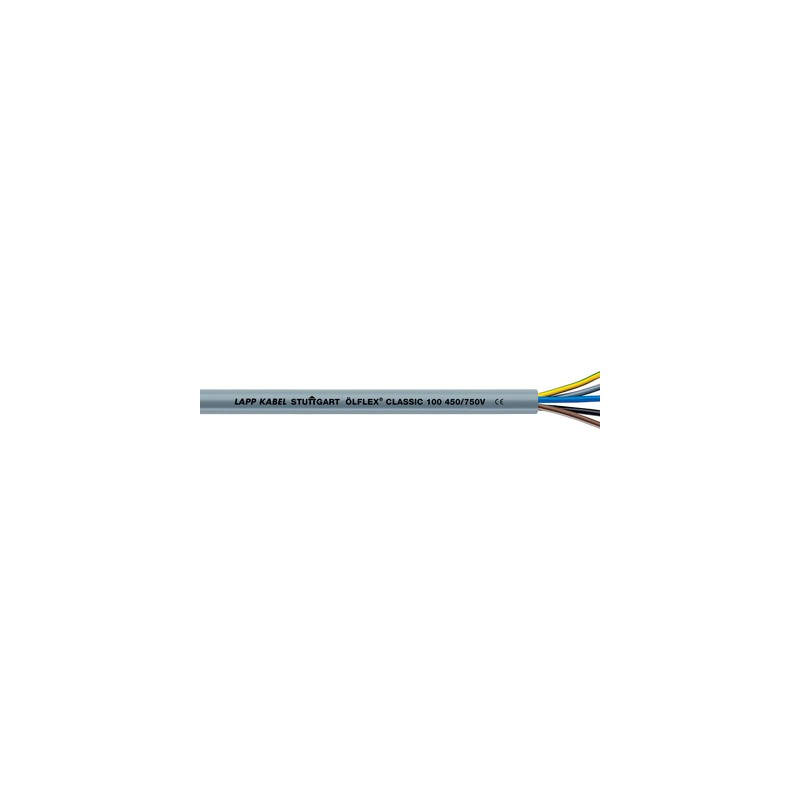

0010306 ÖLFLEX CLASSIC 100 450/750V 3G70 LAPP ÖLFLEX CLASSIC 100 450/750V 3G70

Benefits

• High electrical performance due to 4 kV test voltage
• HIgh flexibility due to short-twisted conductor layers

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
  Power stations
• Dry or damp rooms that are subject to medium mechanical loads
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1

Norm references / Approvals

• Based on IEC 60227-5 and EN 50525-2-51
• Based on EN 50525-2-11 and EN 50525-2-31

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Cores twisted in layers
• PVC outer sheath, grey (similar RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: ÖLFLEX® colour code, refer to Appendix T7

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Torsion movement in WTG

• TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 450/750 VAC
  In protected and fixed installations:
  U0/U: 600/1000 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
