IMETA42650C400 IME TRANSF. INTENSITY 400/5A

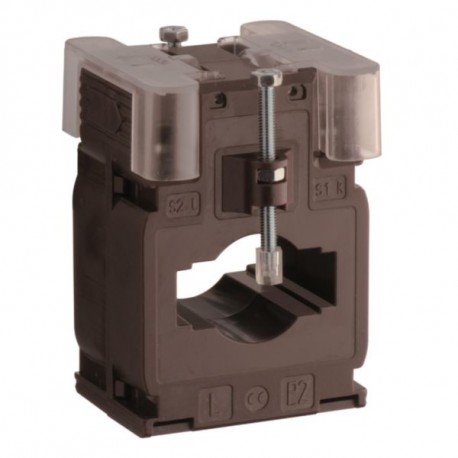

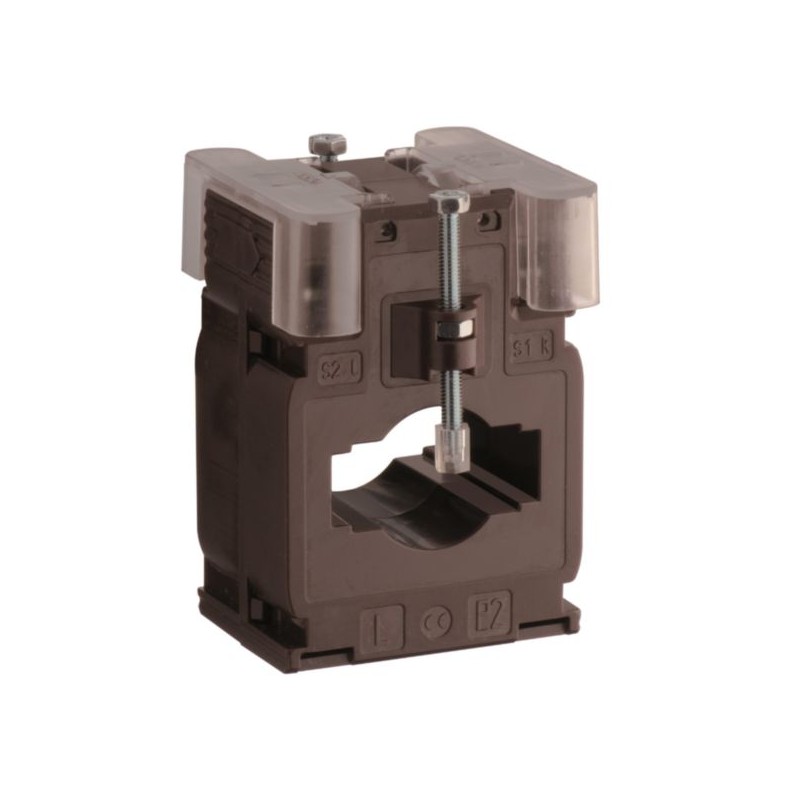

IME TA42650C400 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

TA42650C400 IME TRANSF. INTENSITY 400/5A

Code: TA42650C400

Manufacturer: IME

Description:

TRANSF. INTENSITY 400/5A
Current transformer ratio 400/5A

Categories:

  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 26,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Current transformer. Cable/ Bar intern. D26. WILL Cl,5 6 Cl.1 8. Ratio 400/5A.

General characteristics

Low voltage transformers represent the first link in the chain of measurement to perform electrical measurements industrial. Transformers current allow to determine with accuracy the value of the current applied to the primary through the measurement of the secondary current. The YOU with cable/bar intern, to perform multiple passes (turns) of wire inside the transformer, it can reduce the value of the primary current while maintaining the values, yields and classes of the secondary current without modifying the current actual parent = primary current rating: n.Degrees of turns, example 150/5A with 2 passes of cable = 75/5A with 3 passes of cable =50/5A)
