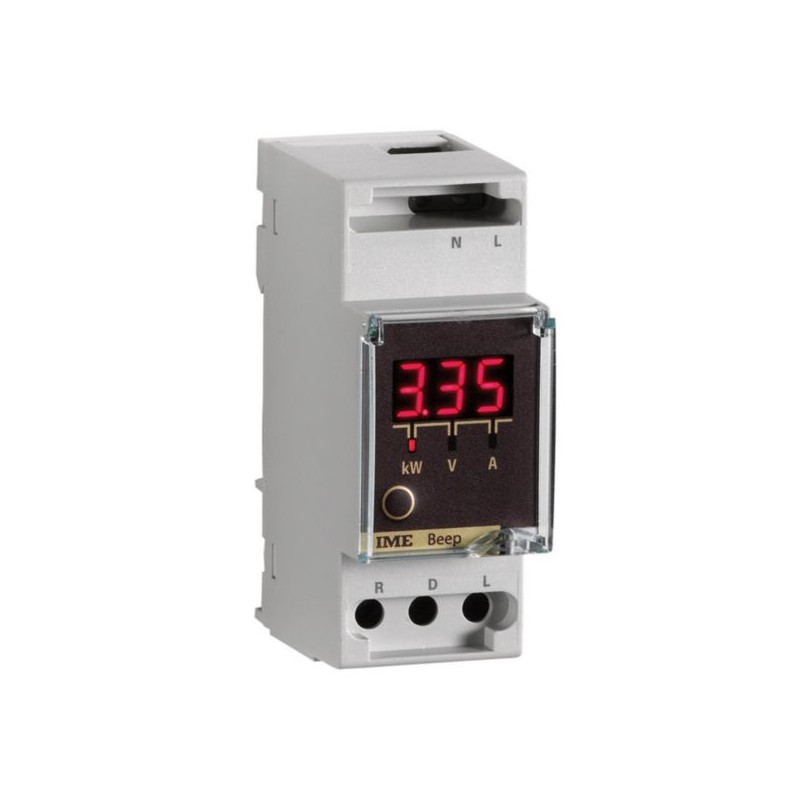

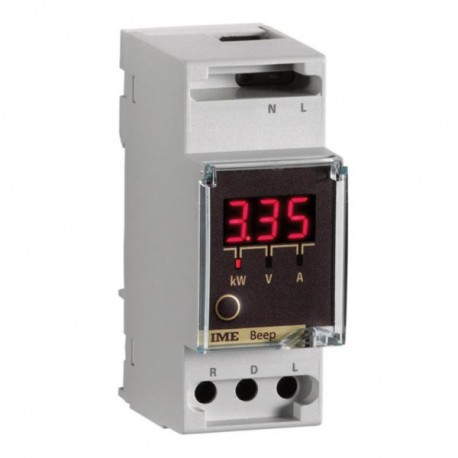

RM2P133 IME RELAY LOAD MANAGEMENT

Product features

Relay of load management phase. 1 contact (SPTS 250 Vac - 16 A). Input 230V - 28A. Alarm threshold: 0 - 6.5 kW. Aux 230 Vac

General characteristics

The simultaneous ignition of multiple devices and the overhead this creates can cause the ICP to disconnect and cut the power. Beep is a relay of festión consumption for single-phase networks with users of up to 6kW designed to solve this problem. Controls continuously the power used and, if it exceeds the configured limit , a warning is displayed by means of a buzzer so that loads can be removed manually to reduce power prior to the occurrence of a power outage, or, if it is selected, the output relay automatically disconnects the load priority. These loads are re-enabled after a time that can be programmed. Thanks to the programming of the threshold of overload (6.5 kW), can be used in usuatios with different potencies 3-4, 5-6 kW (the default setting for user to 3kW) and can manage load is not a priority until 16A. During normal operation, if you press the front button, it is possible to display with red LEDS for the real-time values of the active power (kW), voltage (V) and current (A).
