IME412940 IME *NC + RED LED 1MOD PUSH BUTTON

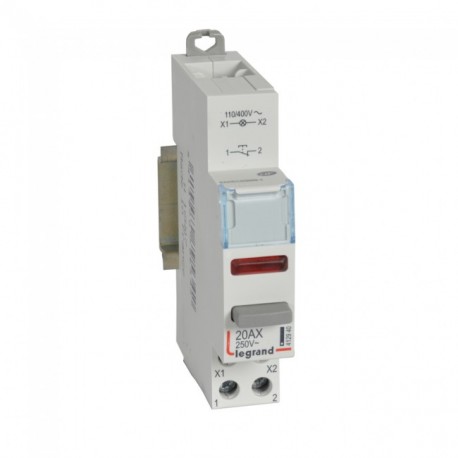

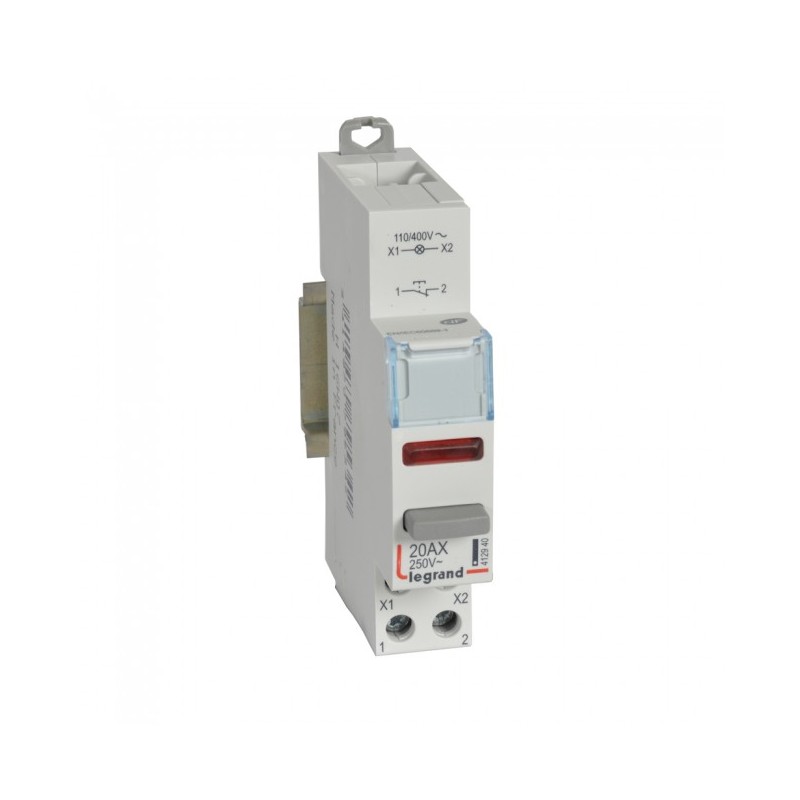

IME 412940 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412940 IME *NC + RED LED 1MOD PUSH BUTTON

Code: 412940

Manufacturer: IME

Description:

*NC + RED LED 1MOD PUSH BUTTON
20A Push Button - 250V~ NA + Red LED

Categories:

  • Devices for distribution board-/surface mounting > Push button for distribution board
  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Modular switch with 1 NC push button + red LED light with dual functions, AC 12 breaking power according to IEC 60947-5-1, 20 A, 250V. Allows the feeding comb to pass through. Conforms to IEC 60669-1.
Number of Normally Closed Contacts1
Number of contacts normally opened0
Number of investor contacts0
Switching Current20 A
Switching voltage250 V
Type of voltageAC
With signal lampYes
Hood colorRed
LampLED
Lamp power max.0.5 W
Lamp Voltage (Min-Max)110-400 V
Button colorGrey
Width in number of modular spaces1
Installation Depth44 mm
Protection Class (IP)IP20
Width17.8 mm
Height90 mm
Depth73.5 mm
Impact resistanceIK04
Operating Temperature (Min-Max)-25-70 °C
Storage Temperature (Min-Max)-40-70 °C
Lighting TypeInterchangeable LED
Estimated bulb life100000 h
Direction of the electricity supplyFrom the bottom
Display of markings on the connection terminalsYes
ColourGrey
RAL number7035
Halogen-freeYes
Connection MethodScrew-on terminal
Terminal Capacity (Min-Max)0.75-4 mm²
Label Space/Print AreaYes
Type of mountingDIN Lane

ETIM for 412940 Modular devices for distribution board/surface mounting (EC001546)

Feature nameMax. lamp power (EF000260)
Feature value0.5 W
Feature nameLamp voltage (EF008856)
Feature value110 V
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSwitching current (EF000188)
Feature value20 A
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameWith signal lamp (EF000198)
Feature valueYes
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameLamp type (EF002423)
Feature valueLED
Feature nameSwitching voltage (EF003586)
Feature value250 V
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameColour button (EF000190)
Feature valueGrey
Feature nameColour calotte (EF004668)
Feature valueRed
Feature nameBuilt-in depth (EF000218)
Feature value44 mm

DATASHEET - PDF

Title
Size
Type
412940 EN_412908.pdf
380 Kbytes
PDF CATALOGUE IME EN
17 Mbytes
