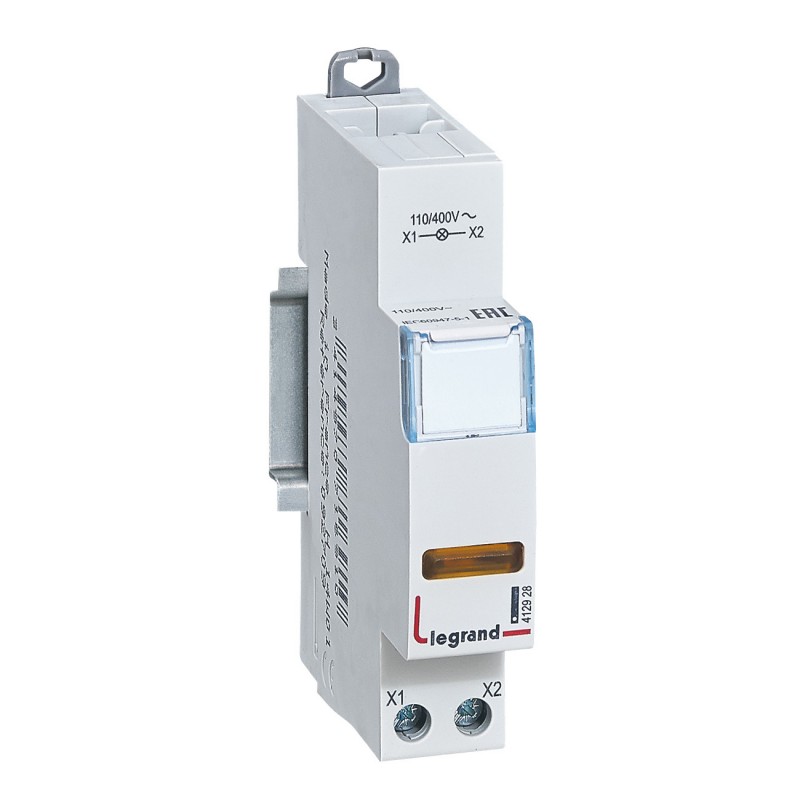

412928 IME ORANGE 1MOD PILOT
412928
IME
10
ORANGE 1MOD PILOT
Pilot light - 250V~ - orange
Devices for distribution board-/surface mounting > Indicator light for distribution board
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Best sellers
▲More info
▲| Hood color | Yellow |
|---|---|
| Lamp | LED |
| Lamp Base | Other |
| Lamp power max. | 0.5 W |
| Nominal voltage | 400 V |
| Type of voltage | AC |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Protection Class (IP) | IP40 |
| Width | 17.8 mm |
| Height | 93.4 mm |
| Depth | 67.3 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
|---|---|
| Frequency (Min-Max) | 50-60 Hz |
| Estimated bulb life | 100000 h |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.75-4 mm² |
| Connection type | Cable |
| Label Space/Print Area | Yes |
| Type of mounting | DIN Lane |
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.5 W |
| Lamp socket (EF004870) | Other |
| Degree of protection (IP) (EF005474) | IP40 |
| Width in number of modular spacings (EF002950) | 1 |
| Voltage type (EF000187) | AC |
| Lamp type (EF002423) | LED |
| Colour calotte (EF004668) | Yellow |
| Built-in depth (EF000218) | 44 mm |
| Rated voltage (EF000228) | 400 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE IME EN.pdf | 17 Mbytes |
|
| 412928 EN_412926.pdf | 356 Kbytes |
|
