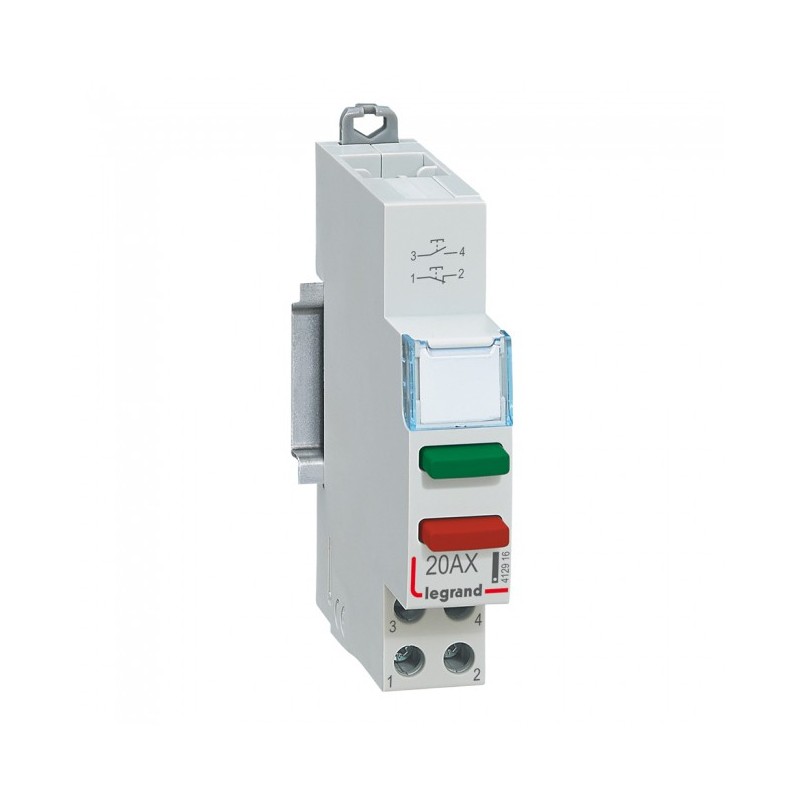

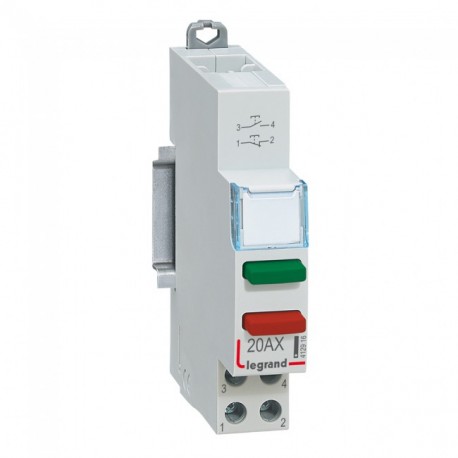

412916 IME NA+NC 1MODULO PUSH BUTTON
412916
IME
10
NA+NC 1MODULO PUSH BUTTON
Double push button - 20A - 250V~ 1 NA green + 1 NC red
Devices for distribution board-/surface mounting > Push button for distribution board
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Related products
▲Best sellers
▲More info
▲| Number of Normally Closed Contacts | 1 |
|---|---|
| Number of contacts normally opened | 1 |
| Number of investor contacts | 0 |
| Switching Current | 20 A |
| Switching voltage | 250 V |
| Type of voltage | AC |
| With signal lamp | No |
| Button color | Red/Green |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Protection Class (IP) | IP20 |
| Width | 17.8 mm |
| Height | 90 mm |
| Depth | 73.5 mm |
| Impact resistance | IK04 |
|---|---|
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Lighting Type | Interchangeable LED |
| Estimated bulb life | 100000 h |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.75-4 mm² |
| Label Space/Print Area | Yes |
| Type of mounting | DIN Lane |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Switching current (EF000188) | 20 A |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 1 |
| With signal lamp (EF000198) | No |
| Voltage type (EF000187) | AC |
| Switching voltage (EF003586) | 250 V |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Colour button (EF000190) | Red/green |
| Built-in depth (EF000218) | 44 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE IME EN.pdf | 17 Mbytes |
|
| 412916 EN_412908.pdf | 380 Kbytes |
|
