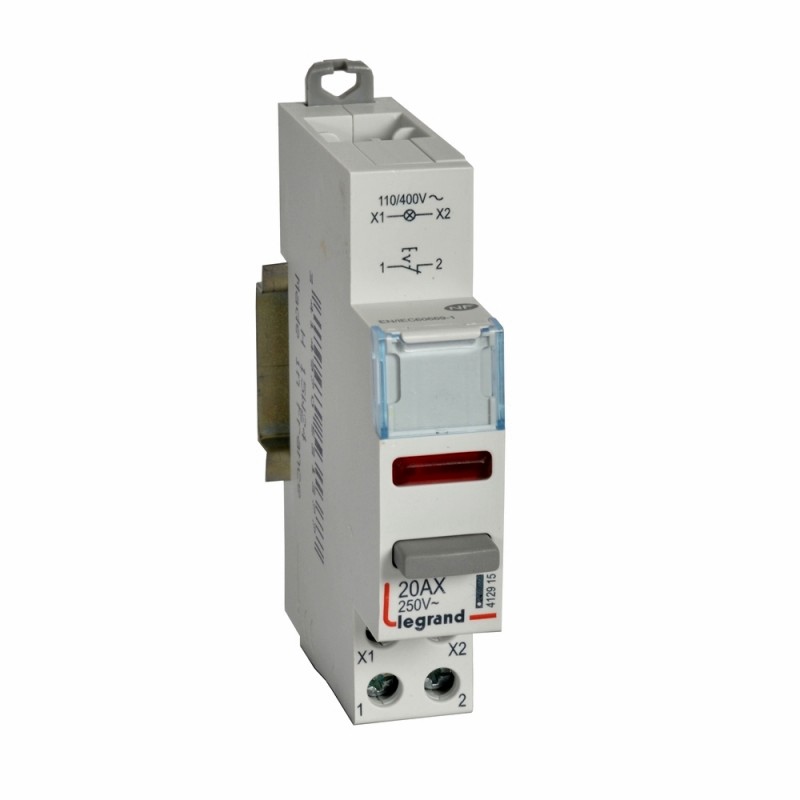

412915 IME NC+VISOR SWITCH 1MODULE
412915
IME
10
NC+VISOR SWITCH 1MODULE
Dual function switch - 20A - 250V~ - 1 NC + red indicator
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Best sellers
▲More info
▲| Number of Normally Closed Contacts | 1 |
|---|---|
| Number of contacts normally opened | 0 |
| Number of investor contacts | 0 |
| Switching Current | 20 A |
| Switching voltage | 250 V |
| Type of voltage | AC |
| With signal lamp | Yes |
| Hood color | Red |
| Lamp | LED |
| Lamp power max. | 0.5 W |
| Lamp Voltage (Min-Max) | 110-400 V |
| Button color | Grey |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Protection Class (IP) | IP20 |
| Width | 17.8 mm |
| Height | 90 mm |
|---|---|
| Depth | 73.5 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Lighting Type | Interchangeable LED |
| Estimated bulb life | 100000 h |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.75-4 mm² |
| Label Space/Print Area | Yes |
| Type of mounting | DIN Lane |
